18 Já-Bar Silicone Corporation • Phone: 973. 786-5000 • Fax: 973. 786-6067 • www.JaBar.com
Dash No. “A” “B” “C” “D”
0101 .188 .437 .062 .062
0102 .218 .250 .062 .093
0103 .218 .218 .062 .093
0104 .250 .156 .062 .125
0105 .250 .188 .062 .125
0106 .250 .218 .062 .125
0107 .250 .312 .062 .125
0108 .312 .281 .062 .187
0109 .375 .500 .125 .125
0110 .250 .312 .062 .125
0111 .312 .375 .062 .187
0112 .375 .500 .125 .062
0113 .375 .500 .125 .125
0114 .437 .250 .125 .125
0115 .500 1.750 .125 .125
0116 .500 2.250 .125 .125
0117 .625 .750 .125 .125
0118 1.00 1.25 .187 .125
0119 1.00 1.50 .187 .187
0120 1.00 1.75 .187 .187
0121 1.00 2.00 .187 .187
“U” Profile Stock
Series 1200
FIGURE 2.3 - “U” Profile stock cross-section

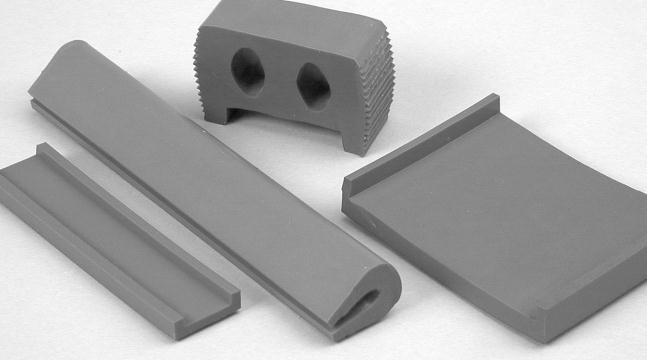

We produce extrusion in silicone rubber
to MIL, AMS, ASTM, as well as federal or
commercial specifications. Standard dies
are available for a wide range of shapes
and sizes. Tooling for most round cord
and rectangular sizes, are in house,
eliminating the cost of tooling when
ordering.
TYPICAL APPLICATIONS:
Gaskets or seals, requiring high and low
temperature advantage
AVAILABLE SPECIFICATIONS
AMS 3301, AMS 3302, AMS 3303,
AMS 3304, AMS 3305, AMS 3307,
AMS 3308, MILR 5847, ZZ R 765,
A A 59588, ASTM D 2000, SAE 2000
