17
Dash No. “A” “B” “D” “E”
0101 .125 .062 .625 .031
0102 .188 .093 .750 .062
0103 .188 .125 1.00 .062
0104 .250 .125 .375 .062
0105 .250 .125 .500 .062
0106 .250 .125 .625 .125
0107 .250 .125 1.00 .062
0108 .250 .125 .625 .062
0109 .250 .125 1.250 .062
0110 .250 .125 2.00 .062
0111 .250 .093 .750 .062
0112 .250 .125 1.00 .062
0113 .250 .125 1.00 .062
0114 .250 .156 1.00 .062
0115 .312 .125 .625 .062
0116 .312 .188 1.00 .093
0117 .375 .250 .687 .062
0118 .375 .250 .750 .062
0119 .375 .188 .750
0120 .375 .312 .875
0121 .375 .250 .875
0122 .375 .281 1.00
0123 .375 .250 1.500
0124 .437 .281 1.00
0125 .500 .375 1.00
0126 .500 .312 1.00
0127 .500 .375 1.062
0128 .500 .250 2.00
0129 .750 .562 1.125
0130 .750 .500 1.188
0131 .875 .375 2.250
0132 1.00 .750 1.562
0133 1.00 .625 2.00
0134 1.00 .500 2.25
0135 1.00 .625 2.50
0136 1.00 .500 2.75
Já-Bar Silicone Corporation • Phone: 973. 786-5000 • Fax: 973. 786-6067 • www.JaBar.com

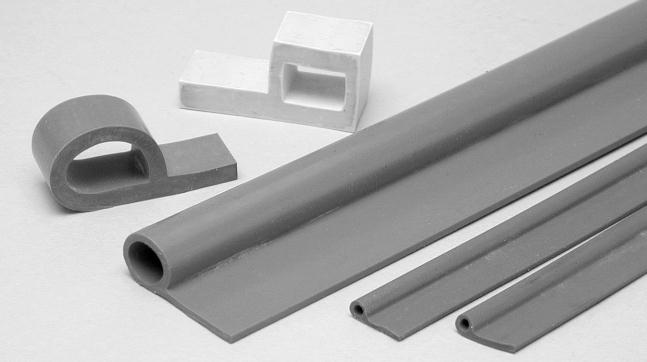

FIGURE 2.3 - “P” Profile stock cross-section
“P” Profile Stock
Series 1200
We produce extrusion in silicone rubber
to MIL, AMS, ASTM, as well as federal or
commercial specifications. Standard dies
are available for a wide range of shapes
and sizes. Tooling for most round cord
and rectangular sizes, are in house,
eliminating the cost of tooling when
ordering.
TYPICAL APPLICATIONS:
Gaskets or seals, requiring high and low
temperature advantage
AVAILABLE SPECIFICATIONS
AMS 3301, AMS 3302, AMS 3303,
AMS 3304, AMS 3305, AMS 3307,
AMS 3308, MILR 5847, ZZ R 765,
A A 59588, ASTM D 2000, SAE 2000
