MANUFACTURE:

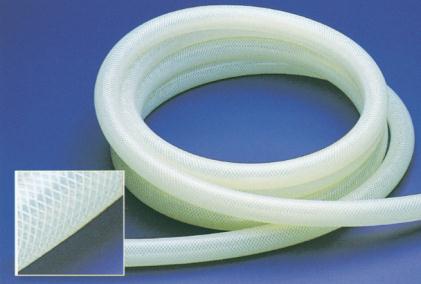

The extruded TECHNOSIL silicone tube complies with FDA 21 CFR
177.2600, USP Class VI, and FDA-BfR Part XV standard in Germany. The
interior polyester fiber braiding allows for high pressure resistance. The
braiding can be made of fiberglass for use at higher temperatures. It is not
recommended for applications with negative pressure (vacuum). For vacuum
applications, we recommend TECHNOSIL H-PTV.
Appearance: Translucent
Length: The standard manufacturing length is 10 meters (33’). 20 meter (66’)
lengths are also available.
Silicone + Fiberglass Reinforcement.
Greater bending radius due to
increased wall thickness.
Standard production color: Orange.
(mm) (inch) (mm) (inch)
Inner
Diameter*
Outer
Diameter
Working Pressure**
bar @ 20°C
ISO
1402/1994
psi @ 68°F
ISO
1402/1994
Bursting Pressure**
*bar @ 20°C
1.59 0.063 7.16 0.28 13.8 200 53.4 775 -
3.18 0.125 9.53 0.37 12.1 175 48.3 700 -
4.76 0.188 11.73 0.46 11.7 170 44.8 650 -
6.35 1/4 13.2 0.52 7.68% 9 130 28 406 1 1/2
7.93 5/16 15 0.59 7.5 108 23 333 1 3/4
9.52 3/8 16.6 0.65 7 101 21 304 2 1/4
12.7 1/2 20.3 0.80 7.42% 5 72 17 246 2 3/4
15.87 5/8 24.5 1.00 4 58 13 188 3 1/4
19.05 3/4 27.9 1.10 9.96% 3.5 50 11 159 3 3/4
22.22 7/8 31.3 1.23 3 43 10 145 4 1/4
25.4 1 34.5 1.36 3 43 9 130 5 1/4
31.75 1 1/4 40.8 1.60 14.43% 2 29 7 101 6 1/4
psi @ 68°F
Volumetric
expansion
with
operating
pressure
Bending
radius
(inch)
(mm) (inch) (mm) (inch)
Inner
Diameter*
Outer
Diameter
Working Pressure** Bursting Pressure**
*bar @ 20°C
ISO 1402/1994
(psi @ 68ºF)
ISO 1402/1994
*bar @ 20°C
ISO 1402/1994
(psi @ 68ºF)
ISO 1402/1994
5,00 3/16 11 0,43 18,0 261,1 53,0 769 1 1/2
6,35 1/4 12 0,47 17,0 246,6 50,0 725 1 3/4
7,93 5/16 15 0,59 15,0 217,6 45,0 653 2 1/4
9,52 3/8 17 0,67 14,0 203,1 42,0 609 2 3/4
12,70 1/2 22 0,87 11,0 159,5 34,0 493 3 1/4
15,87 5/8 25 0,98 10,0 145,0 30,0 435 3 3/4
19,05 3/4 31 1,22 7,0 101,5 22,0 319 5 1/4
25,40 1 38 1,50 6,0 87,0 18,0 261 6 1/4
31,75 1 1/4 46 1,81 5,0 72,5 15,0 218 8
Bending
radius
(inches)
ISO
1746/1983
* The operating and bursting pressures have been tested at
20°C/68ºF ambient temperature. Please decrease pressure by 20%
for each temperature increase of 100ºC/ 212°F.
Operating temperature: -131° F / 392° F
Hardness: 60 shores +/- 5
5
TECHNOSIL PLATINUM H-PTV
