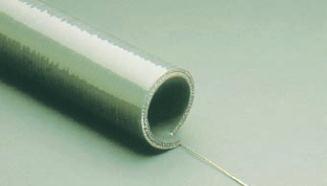

The wall interior is equipped with several tin-plated copper wires that are joined to the
metal fittings by a welding point.The completely equipotent joint ensures that users will be
protected from discharges of static electricity resulting from contact with the tube.
Characteristics

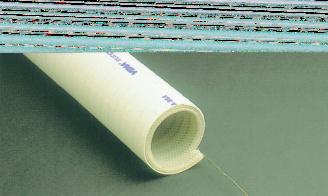

• Industrial grade (not food or pharmaceutical) silicone elastomer.
• Loaded with carbon black.
• Reinforced with several tin-plated copper wires between layers.
•Wires are joined to the metal fittings by a welding point, thus increasing the antistatic
properties.
• Flameproof: Used at critical points where there may be danger of explosion when
materials such as alcohol, perfume, or cosmetic products are transported at high speeds
and generate static electricity.

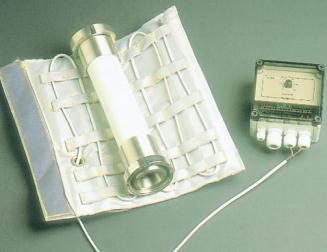

VENAIR Technosil tubes can also be manufactured with a heating sheath that maintains the
temperature required to transport certain products. This sheath is made of silicone-coated
fiberglass fabric. A self-regulating cable runs through the inside as well. Moreover, an electronic
regulation device is connected to the end of the tube to ensure the required temperature is
maintained and no additional power is added when it reaches the optimum level, preventing
product damage.
Voltage: 200- 240V (standard).
Other voltage possibilities exist and can be catered to user’s wiring system.
Temperature:
Temperature can be regulated between +5°C to 140°C (+41ºF to 284ºF). The heating sheaths
are manufactured according tube diameter and length.They are equipped with a fabric band that
attaches both ends and can be easily disassembled.
Major Applications:
Transport of caramel, glycerine, chocolate, or other products that require a constant
temperature during processing.
VENAIR Technosil manufactures a wide range of tubes and special
shapes in accordance with the most demanding market standards,
satisfying all needs that may arise in processing in the food,
pharmaceutical, cosmetics, or chemical industries. In an effort to be kept
abreast of current trends and needs, our Research and Development
department is constantly collaborating with our clients in developing
new products. We encourage this interaction and value the input and
insight of our clients in developing a better product for this constantly
evolving market.

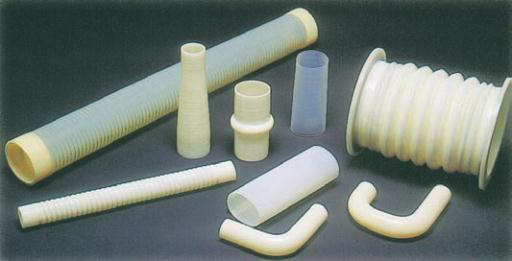

Examples of special products include preformed tubes, expansion
compensators, bend pipes (45º & 90° elbows) large
diameters, thin wall couplings, etc.
All tubes in our standard product line (Sil 640, 650V, 655) can be equipped with tin-plated copper wires encased inside the tube to
ensure protection from the static electricity that may be generated during the production processes.
6
SPECIAL APPLICATIONS AND OPTIONS
CONDUCTOR TUBES (WITH GROUND CONNECTION)
ANTISTATIC (FLAMEPROOF) TUBES
HEATED TUBES (WITH HEATING SHEATH)
