The standard manufacturing length is 4 m (13’). Upon request, 6 m length tubes (19’ 8”) can be manufactured.
* Other diameters can also be manufactured. Please consult.
** Pressure data is noted at ambient temperature. Pressure values should be reduced by 20% for each increase of 212°F.
3
MANUFACTURE:

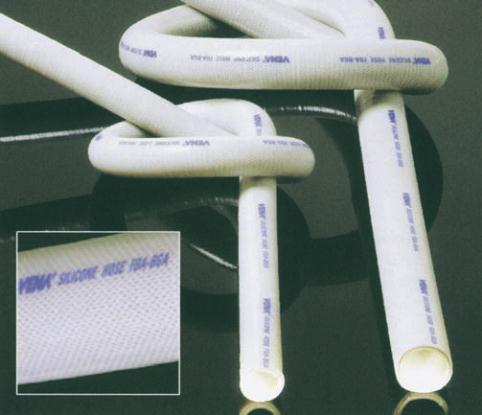

The VENASIL 650V type silicone tube complies with FDA 21 CFR
177.2600, USP Class VI, and FDA-BfR Part XV standard in Germany. It
is a platinum-cured high purity tube, manufactured with four polyester
fabric reinforcements and 302L stainless steel wire spring encased
inside the tube.
Inner appearance: Translucent and smooth.
Outer appearance: Translucent (standard) or colored (special
order), and smooth.
Silicone material option:
- FDA/ BfR Part XV
- FDA/ BfR Part XV Platinum Cured
- USP Class VI Platinum Cured
(mm)
+1-0.5
(mm) (inch)
Inner
Diameter*
Wall
Thickness
(mm) (inch)
Working Pressure** Theoretical
Outer Diameter
bar @ 20°C
ISO
1402/1994
psi @ 68°F
ISO
1402/1994
Bursting Pressure**
bar @ 20°C
ISO
1402/1994
6 1/4 5,5 17,0 0,67 29 13,0 188 38,9 565
8 5/16 5,5 19,0 0,75 31 12,0 174 36,0 522
10 3/8 5,5 21,0 0,83 34 11,0 159 32,9 478
13 1/2 5,5 24,0 0,94 39 9,9 144 29,8 433
16 5/8 5,5 27,0 1,06 45 9,1 132 27,4 397
19 3/4 5,5 30,0 1,18 54 8,3 120 24,8 359
22 7/8 5,5 33,0 1,30 60 7,9 114 23,7 343
25 1 5,5 36,0 1,42 68 7,4 107 22,2 321
32 1 1/4 5,5 43,0 1,69 94 6,4 93 19,3 279
38 1 1/2 5,5 49,0 1,93 112 5,7 83 17,2 250
51 2 5,5 62,0 2,44 144 4,6 67 13,8 200
63 2 1/2 5,5 74,0 2,91 181 3,8 55 11,3 164
76 3 6 88,0 3,46 232 3,0 44 9,1 132
102 4 6 114,0 4,49 367 1,9 27 5,6 82
psi @ 68°F
ISO
1402/1994
Bending
Radius
(mm)
ISO
1746/1983
684 Torr (mmHg)
0,91 bar
0,90 atm
9,29 mH2O
13,23 psi
26,93 inHg
Vacuum
tolerance
