The standard manufacturing length is 4 m (13’). Upon request, 6 m length tubes (19’ 8”) can be manufactured.
* Other diameters can also be manufactured. Please consult.
** Pressure data is noted at ambient temperature. Please reduce pressure values by 20% for each increase of 212°F.
MANUFACTURE:

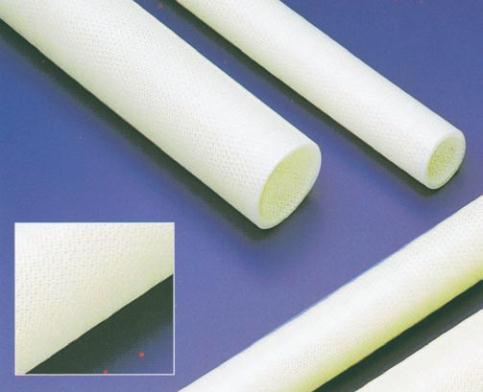

The VENASIL 640 type silicone tube complies with FDA 21 CFR
177.2600, USP Class VI, and FDA-BfR Part XV standard in Germany. It
is a platinum-cured, high purity tube, manufactured with four polyester
fabric reinforcements. A more reinforced version (640 MIF) can also
be manufactured that allows the tube to withstand higher pressure.
Inner appearance: Translucent and smooth.
Outer appearance: Translucent, white or colored, and smooth.
Applications: For use in straight sections equipped with metal
fittings terminals, where flexibility is not required. This model is used
often to detect metal particles which may occur during filling of food
products such as cream or baby food. This type of tube is not
recommended for operation with negative pressure (vacuum).
Silicone material option:
- FDA/ BfR Part XV
- FDA/ BfR Part XV Platinum Cured
- USP Class VI Platinum Cured
(mm)
+1-0.5
(mm)
6
8
10
13
16
19
22
25
32
38
51
63
76
102
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
1/4
5/16
3/8
1/2
5/8
3/4
7/8
1
1 1/4
1 1/2
2
2 1/2
3
4
(inch)
Inner
Diameter*
Wall
Thickness
11,5
10,7
9,7
8,7
8,0
7,7
7,0
6,7
5,7
5,0
4,0
3,3
2,7
1,7
640
Working Pressure** Bursting Pressure**
23,6
20,5
18,3
16,0
14,5
12,9
12,3
11,6
10,2
9,4
8,1
6,9
5,7
3,3
640 MIF
bar @ 20°C
ISO 1402/1994
169
155
140
126
116
111
102
97
82
73
58
48
39
24
640
342
297
265
232
210
187
178
168
148
136
117
100
83
48
640 MIF
psi @ 68°F
ISO 1402/1994
35,0
32,0
29,0
26,0
24,0
23,0
21,0
20,0
17,0
15,0
12,0
10,0
8,0
5,0
640
71
61
55
48
43
39
37
35
31
28
24
21
17
10
640 MIF
bar @ 20°C
ISO 1402/1994
508
464
421
377
348
334
305
290
247
218
174
145
116
73
640
1030
885
798
696
624
566
537
508
450
406
348
305
247
145
640 MIF
psi @ 68°F
ISO 1402/1994
