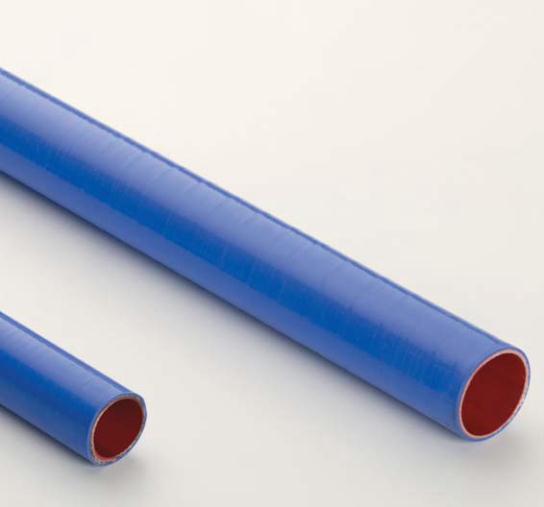

VENA SIL GLASS
STRAIGHT SILICONE HOSE REINFORCED WITH
FIBERGLASS FOR HIGH TEMPERATURES
Material: High temperature resistant silicone.
Textile reinforcement: 3 ply of fiberglass
Temperature range: -76 ° to + 455 °F
(up to + 482°F for short periods of time).
Standard wall thickness: 2.8mm.
Length: From 1 to 4 m.
Can be cut to smaller lengths upon request.
Apperance: Plain outer and inner appearance.
Suitable for use in straight lengths, with no bending
requirements.
Special shapes available upon request (e.g. elbow,
reducer, etc.).
05
OIL-RESISTANT SILICONE HOSE
WITH POLYESTER REINFORCEMENTS
External material: Silicone VMQ (Vinyl Methyl Quality).
Internal material: Silicone R/A (Oil-Resistant).
Textile reinforcement: 3-ply polyester
(Sil 200) / 4ply polyester (SIl 240)
Temperature range: - 76°F to + 356°F
Standard wall thickness: 4.2mm.
Length: From 1 to 4 m.
Can be cut to smaller lengths upon request.
Apperance: Plain outer and inner appearance.
Application: Suitable for engine oils and other mineral oils
up to + 302° F service temperature. Suitable for use in
straight lengths with no bending requirements.
Inner Diameter
1/4"
5/16”
3/8”
1/2"
5/8”
3/4"
7/8”
1”
1 1/8”
1 3/16”
1 1/4"
1 3/8”
1 1/2"
1 9/16”
inches
6
8
10
13
16
19
22
25
28
30
32
35
38
40
mm
214
172
146
120
103
90
80
72
67
62
59
55
52
50
psi
14.98
12.04
10.22
8.4
7.21
6.3
5.6
5.04
4.69
4.34
4.13
3.85
3.64
3.5
bar
Working Pressure
1 3/4"
1 7/8”
2”
2 1/8”
2 1/4"
2 3/8”
2 1/2"
2 5/8”
2 3/4"
3”
3 1/8”
3 1/2"
4”
45
48
51
55
57
60
63
67
70
76
80
90
102
45
43
40
39
37
36
34
33
32
29
29
26
23
3.15
3.01
2.8
2.73
2.59
2.52
2.38
2.31
2.24
2.03
2.03
1.82
1.61
136
130
123
116
113
109
104
101
95
88
85
76
69
9.52
9.1
8.61
8.12
7.91
7.63
7.28
7.07
6.65
6.16
5.95
5.32
4.83
642
517
438
360
307
270
240
217
200
188
180
176
156
150
psi
44.94
36.19
30.66
25.2
21.49
18.9
16.8
15.19
14
13.16
12.6
12.32
10.92
10.5
bar
Bursting Pressure Inner Diameter
inches mm psi bar
Working Pressure
psi bar
Bursting Pressure
