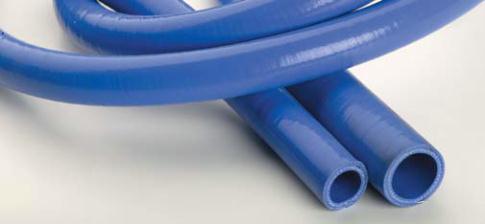

VENA SIL 800
VENA SIL 700
Material: Silicone VMQ (Vinyl Methyl Quality).
Structure: Spiral steel wire between 3 sheets of polyester
fabric covered in blue silicone.
Temperature range: - 76 °F to + 356 °F
Standard wall thickness: 4.6mm.
Length: From 1 to 4 m. Can be cut to smaller
lengths upon request.
Main advantage: High flexibility due to the wire spiral.
Apperance: Plain outer and inner appearance.
Suitable for use where a small bending radius is required.

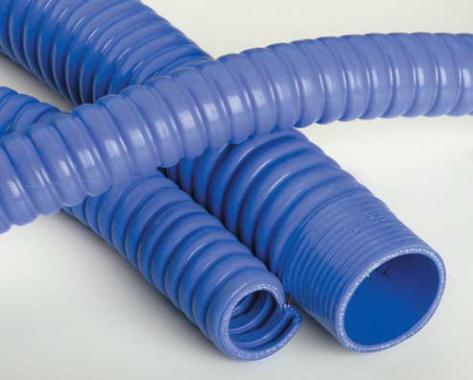

HIGHLY FLEXIBLE SILICONE HOSE WITH POLYESTER
REINFORCEMENT FOR HEATING AND COOLING EQUIPMENT
Material: Silicone VMQ (Vinyl Methyl Quality).
Structure: Spiral steel wire between 3 sheets of polyester fabric
covered in blue silicone.
Temperature range: - 76 °F to + 356°F
Standard wall thickness: 4.6mm.
Length: From 1 to 4 m.
Can be cut to smaller lengths upon request.
Main advantage: High flexibility due to spiral wiring.
Apperance: Corrugated outer and inner appearance. Suitable
for use where a very small bending radius is required.
04
* Maximum diameter is 4.3”
Inner Diameter*
1/2"
5/8”
3/4"
7/8”
1”
1 1/8”
1 3/16”
1 1/4"
1 3/8”
11/2”
1 9/16”
1 5/8”
1 3/4”
1 7/8”
2”
inches
13
16
19
22
25
28
30
32
35
38
40
42
4
48
51
mm
164
151
139
130
122
114
110
103
101
95
93
87
85
81
78
psi
11.48
10.57
9.73
9.1
8.54
7.98
7.7
7.21
7.07
6.65
6.51
6.09
5.95
5.67
5.46
bar
Working Pressure Bursting Pressure
491
452
419
391
367
345
332
309
303
287
277
259
255
242
235
psi
34.37
31.64
29.33
27.37
25.69
24.15
23.24
21.63
21.21
20.09
19.39
18.13
17.85
16.94
16.45
bar
3”
3 1/4"
3 1/2"
3 3/4"
4 1/4"
4 1/2"
4 3/4"
5 1/2"
5 3/4“
6 1/4”
6 1/2”
7 1/4”
7 1/2"
8 1/4"
8 3/4"
inches
76
82
90
95
108
115
120
140
146
158
165
184
190
210
222
mm
Bending Radius
psi
100
93
90
85
81
75
72
71
68
59
55
53
50
48
bar
7
6.51
6.3
5.95
5.67
5.25
5.04
4.97
4.76
4.13
3.85
3.71
3.5
3.36
Working Pressure
psi
300
280
268
258
242
227
219
211
203
178
165
159
1151
1142
bar
21
19.6
18.76
18.06
16.94
15.89
15.33
14.77
14.21
12.46
11.55
11.13
80.57
79.94
Bursting Pressure
inches
2 1/4"
2”
2 3/4”
2 3/4”
3”
3 1/4"
3 1/2"
3 3/4"
4”
4 3/4”
5 1/4”
5 3/4"
6 1/4"
6 3/4"
mm
57
51
70
70
76
82
90
95
102
120
133
146
158
171
Bending Radius Inner Diameter *
inches mm
1”
1 1/8”
1 3/16”
1 1/4"
1 3/8”
1 1/2"
1 9/16”
1 5/8”
1 3/4"
2”
2 1/8”
2 1/4"
2 3/8”
2 1/2"
25
28
30
32
35
38
40
42
45
51
55
57
60
63
HIGHLY FLEXIBLE SILICONE HOSE WITH POLYESTER
REINFORCEMENT FOR HEATING AND COOLING EQUIPMENT
* Maximum diameter is 4.3”
