Page 28 - MEP_Catalogue_US_OK

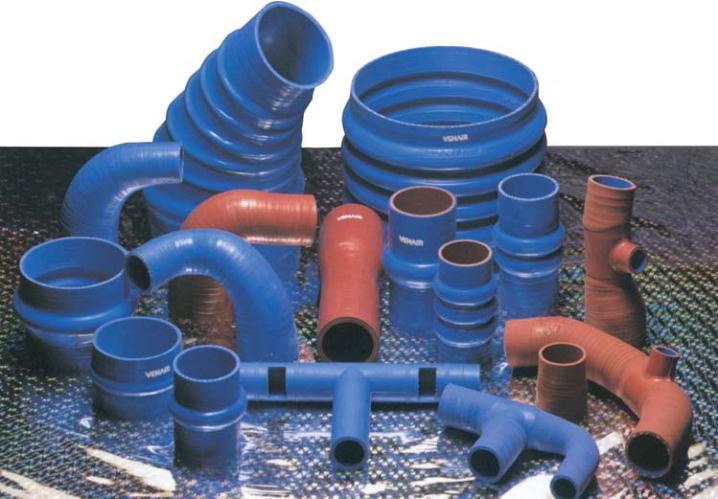

CUSTOM SHAPES and HOSES NON-STANDARD SILICONE HOSES
We also design and manufacturer custom shaped hoses to meet your specific needs.

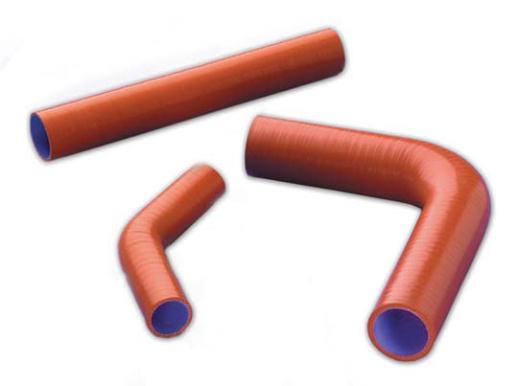

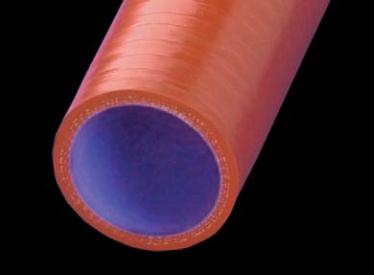

VENA SIL TURBO
SILICONE HOSE FOR TURBOCHARGER SYSTEMS
External material: Silicone VMQ (Vinyl Methyl Quality).
Internal material: Silicone FVMQ (Fluor Vinyl Methyl Quality).
Textile reinforcement: 3 plies of NOMEX
Temperature range: - 76° to + 392°F
(up to 428°F for short periods of time).
Standard wall thickness: 3.7mm.
Length: From 1 to 4 m. Can be cut to smaller lengths upon request.
Appearance: Plain outer and inner appearance.
Application: Mainly used in the turbocharger system for industrial
vehicles, due to its high capacity to withstand hydrocarbons and/or oil
particles in the cooled, pressurized air. Can also be used in other areas
where hydrocarbons and/or oil particles are present. Suitable for use
in straight lengths, with no bending requirements.
Special shapes available upon request (e.g. elbow, reducer, etc.).
UNE EN ISO 9001:2000
UNE EN ISO 14001:1996
EMAS
CERTIFICATION
06
