Pneumatic Quick Couplings
A
Pneumatics 6
5 4
2
3
7
General Purpose – Push-To-Connect
30 Series Industrial Interchange
8
1

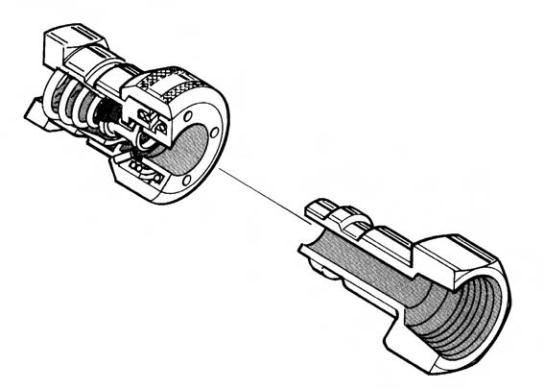

Component Part Features
1. Precision machining, hardened wear points* and solid bar
stock construction provide long life even in rugged
applications.
2. Tubular valve with large flow passages delivers high flow
with minimum pressure drop for efficient performance. The
tubular design provides 360° support for both the valve
seal and the mating nipple for long service life.
3. Precision molded seals form a “bubble tight” seal for
reliable operation within rated working pressures.
Standard seal material is Nitrile. Ethylene Propylene,
Fluorocarbon and Neoprene are available as options.
4. Locking pawls (pins) constructed of stainless steel create
a durable locking mechanism that provides alignment and
evenly distributes loads.
5. Push-to-connect design permits one-handed connection
when the coupler half is rigidly mounted.
6. Knurling on the sleeve provides a gripping surface for
ease of operation.
7. Wide range of end terminations are available to meet
specific needs. Parker push type couplings are available
with male pipe thread, female pipe thread, standard hose
barb, and Push-Lok hose barb**.
8. Parker 30 Series couplings mate with industrial
interchange design nipples. See Table of Contents.
* steel nipples only
** Push-Lok hose barbs are designed for use with Parker Push-Lok hose and
do not require clamps.
