Quick Coupling Division
8145 Lewis Road • Minneapolis, MN 55427
www.parker.com/quickcouplings
A-26
Pneumatic Quick Couplings
A
Pneumatics
General Purpose – Push-To-Connect

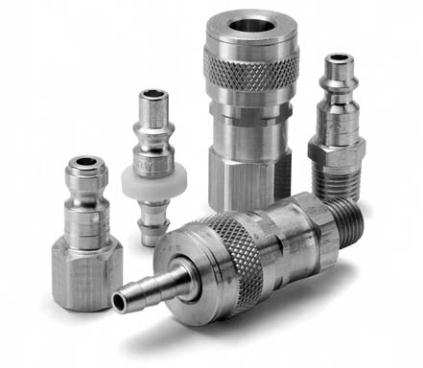

UC Series
Features
• The 1/4" UC Series Coupler will accept the industrial
interchange, [(MIL-C-4109F) and (ANSI/(NFPA) T3.20.14-
1990)], 10 Series (Tru-Flate) and the 50 series (ARO 210)
style nipples.
• The coupler features automatic push-to-connect operation,
high flow machined “window valve,” corrosion resistant solid
brass construction and a sleeve guard which helps prevent
accidental disconnects and protects the sleeve from
damage.
• While the best quick coupling performance is obtained by
matching like series couplers and nipples, the universal
coupler permits multiple series nipples to mate with one
coupler.
Performance
UC Series Coupler (1/4" size)
0
5
10
15
20
25
30
35
0
5
10
15
20
Air Flow in SCFM
1/4"
Pressure Drop in PSID
100 PSI Inlet Pressure
80 PSI Inlet Pressure
Male Pipe Thread
C
A
B
Couplers
Female Pipe Thread
C
A
B
Contact the Division for Hose Barb and Push-Lok port availability
Specifications
Body Size (in.)
1/4
Rated Pressure (PSI)
150
Temperature Range (Nitrile seal)
-40° to +250° F.
Locking Device
4 balls
Vacuum Service
Not Recommended
Body
New
Old
Thread
Dimensions (in.)
Size Part No.
Part No.
Size Overall
Hex Largest Wt. (LB)
(in.)
Brass
Brass
NPTF Length Size Diameter P/Piece
A B C
1/4 UC-251-4MP UC304M-4 1/4-18 2.21 0.81 0.98 0.22
1/4 UC-251-6MP UC304M-6 3/8-18 2.24 0.81 0.90 0.23
Port Configuration
FP - Female Pipe
MP - Male Pipe
HB - Standard Hose Barb*
PL - Push-Lok Hose Barb*
UC Series
Port Size
(1/16 of an inch)
Body Size
25 - 1/4"
UC - 251 - 4 FP -
*
Unit
1 - Valved Coupler
* Contact the Division for availability
Seal Options
Blank - Nitrile
F - Fluorocarbon
E - Ethylene Propylene
How to Order
Body
New
Old
Thread
Dimensions (in.)
Size Part No.
Pat No.
Size Overall
Hex Largest
Wt. (LB)
(in.)
Brass
Brass
NPSF Length Size Diameter P/Piece
A
B C
1/4 UC-251-4FP UC304F-4 1/4-18 2.06 0.81 0.98
0.23
1/4 UC-251-6FP UC304F-6 3/8-18 2.21 0.81 0.98
0.23
