Pneumatic Quick Couplings
A
Pneumatics
Repair Kits
Body Seal Part
Size Material No.
1/4 Nitrile 21K
1/4 Ethylene Propylene 21KW
1/4 Fluorocarbon 21KY
3/8 Nitrile 14K
3/8 Ethylene Propylene 14KW
3/8 Fluorocarbon 14KY
1/2 Nitrile 16K
1/2 Ethylene Propylene 16KW
1/2 Fluorocarbon 16KY
3/4 Nitrile 38K
3/4 Ethylene Propylene 38KW
3/4 Fluorocarbon 38KY
Performance
30 Series (1/2" & 3/4" sizes)
0
20
40
60
80
100
120
140
160
180
200
220
0 5 10 15 20
Air Flow in SCFM
3/4"
1/2"
Pressure Drop in PSID
100 PSI Inlet Pressure 80 PSI Inlet Pressure
How to Order Information
Available with Sleeve-Lok (See Coupler Options Section).
To order, add the suffix “-SL” to part number, Example: B33-SL.
Brass valves are available for extra corrosion resistance. To
specify a brass valve, add the suffix “N” to the regular part
number. Example: B33N. A brass valve should be used for
corrosive applications where steel parts are not suitable.
Consult the factory for specific recommendations.
Features
• Parker 30 Series couplers are designed for rigid mounting
that allows a simple push-to-connect operation.
• Constructed of a solid brass body and a steel valve, 30
Series couplers are noted for their high flow capability,
reliability and rugged design.
• Parker 30 Series couplers accept industrial interchange
nipples manufactured by Parker and other manufacturers.
• Standard seal material is Nitrile. See Ordering Information
at the beginning of Section A and the Fluid Compatibility
Chart at the end of this catalog for optional materials.
Operation
Push type couplings feature one handed “automatic”
connection by pushing the nipple into the coupler–provided
the coupler half is firmly mounted.
The locking mechanism of Parker 30 Series couplers consists
of pawls (or pins) which act directly on the sleeve, thereby
causing the sleeve to automatically retract when the mating
nipple is inserted.
Sleeve must be manually retracted to remove the nipple.
30 Series couplings are push type Single Shut-Off couplings.

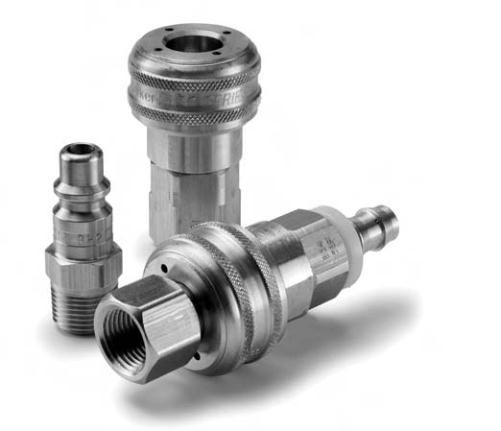

General Purpose – Push-To-Connect
30 Series Industrial Interchange
Specifications
Body Size (in.) 1/4 3/8 1/2 3/4
Rated Pressure (PSI) 300 300 300 300
Temperature Range (Std. seals)* -40° to +250° F.
Locking Device 3 pawls 4 pawls 5 pawls 6 pawls
Vacuum Data (inches Hg)
Disconnected (coupler only) Not recommended
Connected 27.4 27.4 27.4 27.4
* See Coupling Selection and Ordering Guide for Optional Seals.
30 Series (1/4" & 3/8" sizes)
0
10
20
30
40
50
60
70
0 5 10 15 20
Air Flow in SCFM
3/8"
1/4"
Pressure Drop in PSID
100 PSI Inlet Pressure 80 PSI Inlet Pressure
