Diagnostic Products

Quick Coupling Division

8145 Lewis Road • Minneapolis, MN 55427

www.parker.com/quickcouplings

F-5

F

Diagnostic

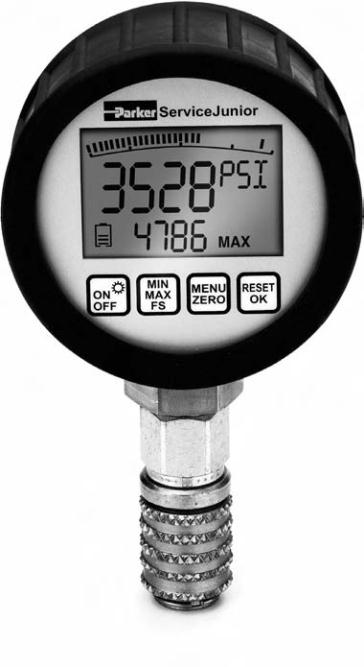

The SensoControl ServiceJunior

™

Technical Data

®

The new Parker ServiceJunior captures

momentary pressure spikes that are

“invisible” to normal liquid-filled gauges.

That means the maximum pressure

reading it delivers can be trusted as

a much truer reflection of the

system’s actual condition; so you

can identify potential problems

better and diagnose their causes

faster. All readings are accurate

to within +/-0.5%.

Measuring

ServiceJunior

Overload

Resolution

Range

with PD Coupler

with EMA3 Coupler

with 1/4" NPT Port

Pressure

-14.5 to 250 PSI

SCJR-0250-PD SCJR-0250-EMA

SCJR-0250-4MP

580 PSI

0.1 PSI

(-1 to 16 bar)

0 to 1500 PSI

SCJR-1500-PD SCJR-1500-EMA

SCJR-1500-4MP

2,900 PSI

1 PSI

(0 to 100 bar)

0 to 5800 PSI

SCJR-5800-PD SCJR-5800-EMA

SCJR-5800-4MP 11,600 PSI

1 PSI

(0 to 400 bar)

0 to 8700 PSI

SCJR-8700-PD

1

SCJR-8700-EMA

2

SCJR-8700-4MP 17,400 PSI

1 PSI

(0 to 600 bar)

NOTES: 1. PD Couplers rated to 6,000 PSI max. 2. EMA3 Couplers rated to 9,000 PSI max.

Accessories

Part Number

Description

PD240

PD Series diagnostic coupler

SCA-7/16-EMA-3

7/16 -18UNF-2B female to M16X2.0 EMA3 female swivel

SCJA-1/4

7/16 -18UNF-2B female to 1/4" NPT male adapter

PDH-19

19" PD Hose extension to be used with PD nipple interface

SMA3-400

16” hose assembly for EMA M16X2.0 interface

SCC-110

Storage case for one gauge and diagnostic adapters

SCC-150

Storage case for two gauges and diagnostic adapters

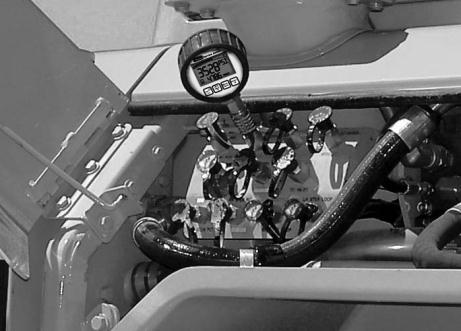

• Easy to connect and test system pressure

using Parker Diagnostic test port couplings

• Robust, dirt resistant housing

• Simple to operate, four key menu

• Four digit backlit display with easy to read

large 0.60" characters

• Minimum and maximum graphic display

shows pressure peak

• Power status displayed continuously

• Can be used with most hydraulic and

pneumatic media

• Measure PSI, bar, mPa, kPa with one gauge

• Accuracy +/- 0.5% of full scale

• Four pressure ranges

• Operating temperature 14° to 122º F

• Fluid temperature -4° to 176º F

• Storage temperature -4° to 140º F

• Auto power off after 5 minutes or

"constant on" at the touch of a button

• Zero adjustment function

• 10 msec scanning rate

• Ratings:

Environmental Protection: EN60529 (IP 65)

Vibration: IEC 60068-2-6/10 – 500Hz: 20g

Shock: IEC 60068-2-29/50g 11 msec

ServiceJunior Features
