Diagnostic Products
Quick Coupling Division
8145 Lewis Road • Minneapolis, MN 55427
www.parker.com/quickcouplings F-6
F
Diagnostic
The SensoControl® Serviceman™
General
Hand-held
Diagnostic Meter
to Measure Pressure,
Temperature, Flow and
Rotational Speed for
Hydraulic and
Pneumatic Systems
• Easy operation
• Rugged design
• Compact Dimensions
• Two line display
• Auto sensor recognition
• MIN/MAX Memory
• Pressure differential
• External power supply
• Data output for PC
The Serviceman field kit is the ideal set of diagnostic tools for
maintenance and service personnel in the industrial, mobile
and agricultural markets. These units help reduce downtime
by recording the best preventative maintenance and
diagnostic data available.
Parker Hannifin provides the most complete line of hydraulic
and pneumatic diagnostic equipment available today. For
more information contact the Quick Coupling Division
or your local distributor.

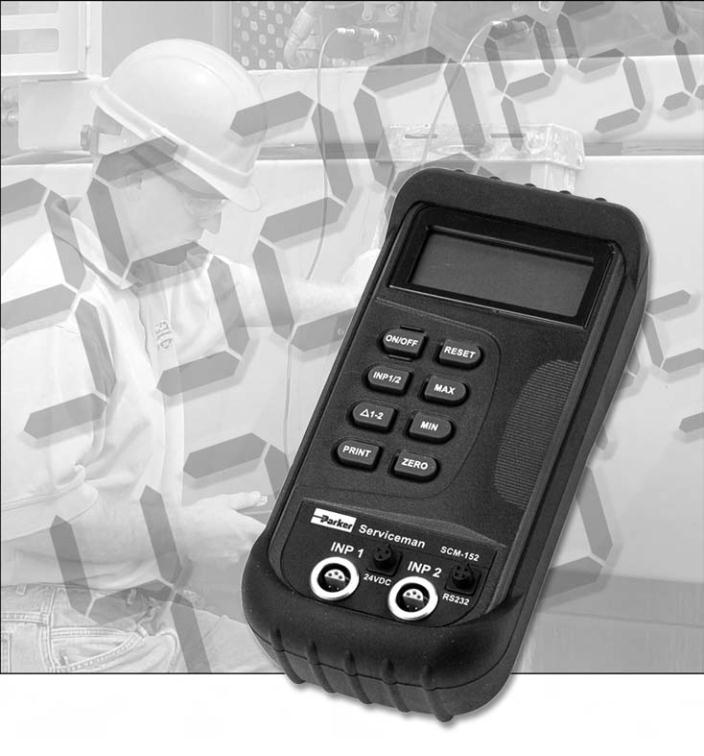

The Serviceman SCM-152 from Parker is a portable
diagnostic measuring system – an excellent alternative to
conventional mechanical pressure gages – a very rugged,
durable test meter that can withstand even the most
demanding environmental conditions.
The Serviceman meter uses the latest in sensor recognition
technology which eliminates the need for meter adjustment.
It’s powered by a rechargeable Ni-MH battery system or a
120 volt external power supply for continuous operation
Using Serviceman software (compatible with Windows 98
and newer operating systems) the SCM-152 quickly
interfaces with an Excel spread sheet.
