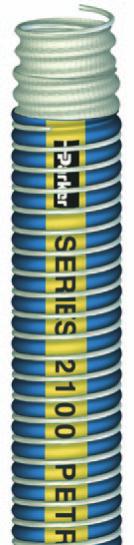

Composite
Petroleum Transfer Hose
Series 2100
Inner Wire: Galvanized steel (G)
Inner Liner: Polypropylene fabric
Hose Wall: Multiple layers of fabric/flm/tubes
Cover: Blue PVC-covered polyester
Outer Wire: Galvanized steel (G)
Temp Range: -40°F to +212°F (-40°C to +100°C)
Brand Method: Black text on gold stripe
Brand Example: PARKER SERIES 2100 PETROLEUM TRANSFER HOSE
XXX PSI MAX WP MADE IN USA
Design Factor: 4:1
Industry Standards: American Bureau of Shipping (ABS) Certifcate of Design Assessment
2009 Steel Vessels Rules
Applications: Marine, plant processing, rail car, ship-to-shore, tank truck
NOTE: Not for dry material service.
Vacuum: Full
Compare to: Apollo 100P; Dantec Danoil 7 GG; Perafex GGP Hydrocarbon; Tift 901
Fuelmaster; Uni-Chem Uni-Oil GG; Wilcox 1091/1151 GG
Standard Wire: G (Galvanized) inner and outer
Available Wire Options: See table below
Coupling Rec: Permanently attached one-piece male pipe or fanged ends; cam
and groove. Refer to page 387 for standard factory coupling options.
Assemblies: Per customer requirement; hydrostatically tested to 150% of the
rated working pressure. Contact Parker.
Part
Number
ID
(in)
ID
(mm)
Approx
Wt
(lbs/ft)
Min Bend
Rad
(in)
Max
Rec WP
(psi)
Max Lg
(ft)
2100GG-1000 1 25.4 0.8 5.0 250 75
2100GG-1500 1-1/2 38.1 1.0 6.0 250 75
2100GG-2000 2 50.8 1.2 6.5 250 75
2100GG-2500 2-1/2 63.5 1.6 8.0 250 75
2100GG-3000 3 76.2 2.0 9.5 250 70
2100GG-4000 4 101.6 4.4 16.0 250 70
2100GG-6000 6 152.4 7.0 20.0 250 65
2100GG-8000 8 203.2 10.0 29.0 250 65
2100GG-10000 10 254.0 23.0 40.0 150 50
WARNING! It is the responsibility of the user to
determine if the hose is suitable for the application.
Elevated temperatures can change the chemical
resistance ratings. Many chemicals will become
more aggressive as temperatures increase, reducing
the ability of hose materials to withstand them.
Contact Parker for chemical compatibility data at
elevated temperatures. Refer to the Safety and
Technical section of this catalog for safety, handling
and use information. Refer to the Composite Hose
table in the Chemical Guide section of this catalog
to determine compatibility with specifc chemicals.
Contact Parker for additional chemical compatibility
information. If no data exists, users are required
to perform compatibility testing at the desired
temperature.
! Available Component Materials
Component Description Alpha Designation
in Hose Part Number
Inner Wire Galvanized Steel G
Outer Wire Galvanized Steel G
Inner Liner Polypropylene n/a (Standard)
Polytetrafuoroethylene (PTFE)
Select PTFE for extremely high aromatic content
#
Couplings Carbon Steel –
Stainless Steel –
See page 387 for additional coupling materials data.
# Specify when ordering.
