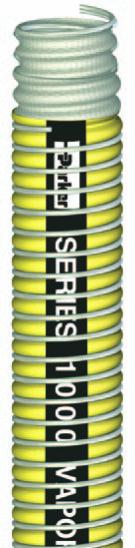

Composite
Vapor Recovery Hose
Series 1000
Inner Wire: Galvanized steel (G)
Inner Liner: Polypropylene fabric
Hose Wall: Multiple layers of fabric/flm/tubes
Cover: Yellow PVC-covered polyester
Outer Wire: Galvanized steel (G)
Temp Range: -40°F to +212°F (-40°C to +100°C)
Brand Method: White text on black stripe
Brand Example: PARKER SERIES 1000 VAPOR RECOVERY HOSE 100 PSI MAX WP
MADE IN USA
Design Factor: 4:1
Industry Standards: USCG 33CFR 154.810
Applications: Petroleum and petrochemical vapor recovery in bottom loading,
ship-to-shore and tank truck transfer
NOTE: Not for dry material service.
Vacuum: Full
Compare to: Apollo 110P, Dantec Danoil VR; Perafex GGP-VRH; Tift 944 Chemfex
VRH; Uni-Chem Uni-VR; Wilcox 1321
Standard Wire: G (Galvanized) inner and outer
Available Wire Options: See table below
Alternate P/N Example: 1000GS-4000 (Galvanized inner, Stainless outer)
Coupling Rec: Permanently attached one-piece male pipe or fanged ends; cam
and groove. Refer to page 387 for standard factory coupling options.
Assemblies: Per customer requirement; hydrostatically tested to 150% of the rated
working pressure. Contact Parker.
Part
Number
ID
(in)
ID
(mm)
Approx
Wt
(lbs/ft)
Min Bend
Rad
(in)
Max
Rec WP
(psi)
Max Lg
(ft)
1000GG-4000 4 101.6 3.0 11.0 100 70
1000GG-6000 6 152.4 4.0 16.0 100 65
1000GG-8000 8 203.2 8.0 22.0 100 65
1000GG-10000 10 254.0 18.0 35.0 100 50
Available Component Materials
Component Description Alpha Designation
in Hose Part Number
Inner Wire Galvanized Steel G
Stainless Steel (316) S
Outer Wire Galvanized Steel G
Stainless Steel (316) S
Inner Liner Polypropylene n/a (Standard)
Polytetrafuoroethylene (PTFE) #
Couplings Carbon Steel –
Stainless Steel –
WARNING! It is the responsibility of the user to determine
if the hose is suitable for the application. Elevated temperatures
can change the chemical resistance ratings. Many chemicals will
become more aggressive as temperatures increase, reducing
the ability of hose materials to withstand them. Contact Parker
for chemical compatibility data at elevated temperatures. Refer
to the Safety and Technical section of this catalog for safety,
handling and use information. Refer to the Composite Hose
table in the Chemical Guide section of this catalog to determine
compatibility with specifc chemicals. Contact Parker for
additional chemical compatibility information. If no data exists,
users are required to perform compatibility testing at the desired
temperature.
!
Notes:
• Inner liner and inner wire selection should match that of the
composite transfer hose.
• See page 387 for additional coupling materials data.
# Specify when ordering.
