Heavy Duty Water Discharge Hose
Series ES104
CustomMade Hose

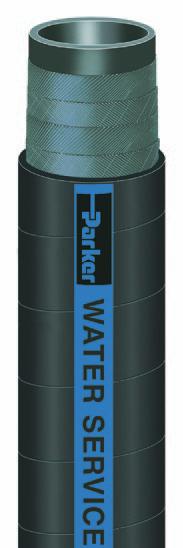

Series ES104 is a large diameter heavy duty discharge hose designed to handle slurries and
water. Te hose construction incorporates a heavy wall and elevated working pressure for
durability and superior service, and the SBR cover is resistant to abrasion and weathering.
Tube:
Black SBR
Reinforcement:
Multiple textile plies
Cover:
Black SBR; wrapped fnish
Temp. Range:
-40°F to +180°F (-40°C to +82°C)
Brand Method:
Black text on blue stripe
Brand Example:
PARKER WATER SERVICE
Design Factor:
3:1 (plain ends); 4:1 (built-in ends)
Industry Standards:
None applicable
Applications:
• Slurries, water
• Agriculture, construction, general industrial, irrigation, surface mining
Vacuum:
Not recommended
Couplings:
Available with built-in ends per customer specifcation
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Max
Rec WP
(psi)
Max
Rec WP
(bar)
ES104-8000
8
203.2
4
8.668
220.7
5.00
2.27
175
12.1
ES104-8625
8-5/8
219.1
4
9.344
237.3
5.50
2.49
175
12.1
ES104-10000
10
254.0
4
10.688 271.5
6.20
2.81
150
10.3
ES104-10750
10-3/4 273.1
4
11.500 292.1
6.70
3.04
150
10.3
ES104-12000
12
304.8
4
12.688 322.3
7.00
3.18
140
9.7
ES104-12750
12-3/4 323.9
4
13.500 342.9
7.80
3.54
130
9.0
ES104-14000
14
355.6
4
14.688 373.1
8.50
3.86
120
8.3
ES104-16000
16
406.4
4
16.531 419.9
9.70
4.40
100
7.0
ES104-18000
18
457.2
4
18.688 474.7
11.00
4.99
90
6.2
