333 Parker Industrial Hose Customer Service
866 810 HOSE (4673) 800 242 HOSE (4673)
Strongsville, OH South Gate, CA
Eastern USA Western USA
www.safehose.com
e-mail: indhose@parker.com
Water

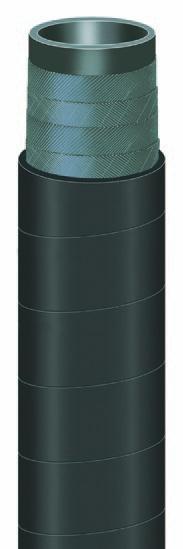

Medium Duty Water Discharge Hose
Series SS155
Series SS155 is a large diameter, medium duty discharge hose designed to handle slurries
and water. Te SBR cover is resistant to abrasion and weathering.
Tube: Black SBR
Reinforcement: Multiple textile plies
Cover: Black SBR; wrapped fnish
Temp. Range: -40°F to +180°F (-40°C to +82°C)
Brand Method: Not branded
Design Factor: 4:1
Industry Standards: None applicable
Applications: • Slurries, water
• Construction, general industrial, surface mines
Vacuum: Not recommended
Packaging: Coils
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Max
Rec WP
(psi)
Max
Rec WP
(bar)
Perm
Cplg
Rec
*
Std Pack
Qty
(ft)
Stock
Status
**
SS155-4000 4 101.6 4 4.438 112.7 1.39 0.63 200 13.8 * 100 N
SS155-6000 6 152.4 4 6.438 163.5 2.02 0.92 150 10.3 * 100 N
* Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
WARNING! Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the
maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
!
