Water
Lightweight Water Discharge Hose
Series ES115
CustomMade Hose

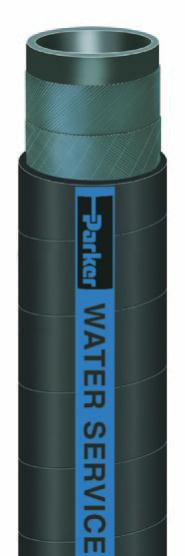

Series ES115 is a large diameter lightweight discharge hose designed to handle slurries and
water. Te hose construction incorporates a medium wall, and the SBR cover is resistant to
abrasion and weathering.
Tube:
Black SBR
Reinforcement:
Multiple textile plies
Cover:
Black SBR; wrapped fnish
Temp. Range:
-40°F to +180°F (-40°C to +82°C)
Brand Method:
Black text on blue stripe
Brand Example:
PARKER WATER SERVICE
Design Factor:
3:1
Industry Standards:
None applicable
Applications:
• Slurries, water
• Agriculture, construction, general industrial, irrigation
Vacuum:
Not recommended
Couplings:
Built-in ends not available
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Max
Rec WP
(psi)
Max
Rec WP
(bar)
ES115-8000
8
203.2
2
8.500
215.9
3.90
1.77
100
7.0
ES115-8625
8-5/8
219.1
2
9.125
231.8
4.30
1.95
95
6.6
ES115-10000
10
254.0
2
10.531 267.5
5.00
2.27
80
5.5
ES115-10750
10-3/4 273.1
2
11.313 287.3
5.30
2.40
75
5.2
ES115-12000
12
304.8
2
12.531 318.3
6.00
2.72
70
4.8
ES115-12750
12-3/4 323.9
2
13.313 338.1
6.40
2.90
65
4.5
ES115-14000
14
355.6
2
14.531 369.1
7.00
3.18
60
4.1
ES115-16000
16
406.4
2
16.531 419.9
7.90
3.58
50
3.4
ES115-18000
18
457.2
2
18.531 470.7
8.90
4.04
45
3.1
WARNING!
Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the
maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
!
