Water
Heavy Duty Water Suction Hose
Series EW301
CustomMade Hose

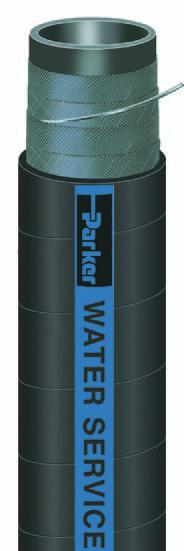

Series EW301 is a large diameter heavy duty suction hose designed to handle slurries and
water. Te hose construction incorporates a wire helix that provides full suction capability
and kink resistance, and the SBR cover is resistant to abrasion and weathering.
Tube: Black SBR
Reinforcement: Multiple textile plies with wire helix
Cover: Black SBR; wrapped fnish
Temp. Range: -40°F to +180°F (-40°C to +82°C)
Brand Method: Black text on blue stripe
Brand Example: PARKER WATER SERVICE
Design Factor: 3:1 (plain ends); 4:1 (built-in ends)
Industry Standards: None applicable
Applications: • Slurries, water
• Agriculture, construction, general industrial, irrigation, surface mining
Vacuum: Full
Compare to: Veyance Versifo 100
Couplings: Available with built-in ends per customer specifcation
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec WP
(psi)
Max
Rec WP
(bar)
EW301-8000 8 203.2 4 9.125 231.8 10.90 4.94 48.0 1219.2 150 10.3
EW301-8625 8-5/8 219.1 4 9.750 247.6 11.70 5.31 56.0 1320.8 150 10.3
EW301-10000 10 254.0 4 11.125 282.6 14.50 6.58 60.0 1524.0 150 10.3
EW301-10750 10-3/4 273.1 4 12.000 304.8 18.80 8.53 68.0 1651.0 150 10.3
EW301-12000 12 304.8 4 13.313 338.2 20.90 9.48 72.0 1828.8 140 9.7
EW301-12750 12-3/4 323.9 4 14.000 355.6 22.10 10.02 80.0 1955.8 130 9.0
EW301-14000 14 355.6 4 15.313 389.0 26.10 11.84 84.0 2133.6 120 8.3
EW301-16000 16 406.4 4 17.313 439.8 29.60 13.43 96.0 2438.4 100 7.0
EW301-18000 18 457.2 4 19.313 490.6 33.20 15.06 108.0 2743.2 90 6.2
WARNING! Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the
maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
!
