Page 345 - Cat4800-Oct2011

331 Parker Industrial Hose Customer Service
866 810 HOSE (4673) 800 242 HOSE (4673)
Strongsville, OH South Gate, CA
Eastern USA Western USA
www.safehose.com
e-mail: indhose@parker.com
Water

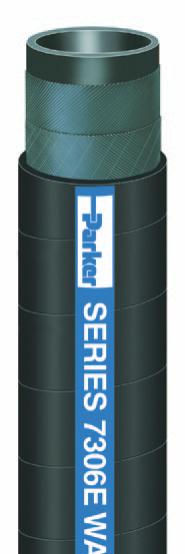

EPDMWater Discharge Hose
Series 7306E
Series 7306E is a lightweight discharge hose designed to handle alkalies, brine, glycols,
herbicides, mild chemicals, slurries and water. Te EPDM cover is resistant to abrasion,
heat, mild chemicals and weathering.
Tube: Black EPDM
Reinforcement: Multiple textile plies
Cover: Black EPDM; wrapped fnish
Temp. Range: -20°F to +180°F (-29°C to +82°C)
Brand Method: White text on blue stripe
Brand Example: PARKER SERIES 7306E WATER DISCHARGE HOSE 150 PSI MAX WP
Industry Standards: None applicable
Applications: • Alkalies, brine, glycols, herbicides, mild chemicals, slurries, water
• Agriculture, construction, general industrial, irrigation, surface mining
Vacuum: Not recommended
Compare to: Veyance Plicord Water Discharge 150
Packaging: Coils
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Max
Rec WP
(psi)
Max
Rec WP
(bar)
Perm
Cplg
Rec
*
Std Pack
Qty
(ft)
Stock
Status
**
7306E-1500 1-1/2 38.1 2 1.800 46.0 0.42 0.19 150 10.3 * 100 Y
7306E-2000 2 50.8 2 2.350 58.4 0.65 0.29 150 10.3 * 100 Y
7306E-2500 2-1/2 63.5 2 2.880 71.1 0.80 0.36 150 10.3 * 100 Y
7306E-3000 3 76.2 2 3.450 84.4 1.25 0.57 150 10.3 * 100 Y
7306E-4000 4 102.0 2 4.450 110.8 1.40 0.64 150 10.3 * 100 Y
* Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
WARNING! Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the
maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
!
