Water

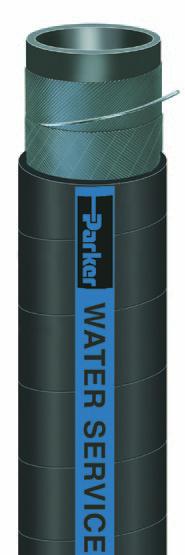

Lightweight Water Suction Hose
Series EW300
CustomMade Hose
Series EW300 is a large diameter lightweight suction hose designed to handle slurries and
water. Te hose construction incorporates a wire helix that provides full suction capability
and kink resistance, and the SBR cover is resistant to abrasion and weathering.
NOTE: For smaller diameter hose, refer to Series SW300.
Tube: Black SBR
Reinforcement: Multiple textile plies with wire helix
Cover: Black SBR; wrapped fnish
Temp. Range: -40°F to +180°F (-40°C to +82°C)
Brand Method: Black text on blue stripe
Brand Example: PARKER WATER SERVICE
Design Factor: 3:1
Industry Standards: None applicable
Applications: • Slurries, water
• Agriculture, construction, general industrial, irrigation
Vacuum: Full
Couplings: Built-in ends not available
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec WP
(psi)
Max
Rec WP
(bar)
EW300-6625 6-5/8 168.3 2 7.500 190.5 5.90 2.68 40.0 1016.0 125 8.6
EW300-7000 7 177.8 2 7.875 200.0 7.00 3.18 42.0 1066.8 115 7.9
EW300-7500 7-1/2 190.5 2 8.375 212.7 7.50 3.40 45.0 1143.0 110 7.6
EW300-8000 8 203.2 2 8.875 225.4 8.40 3.81 48.0 1219.2 100 7.0
EW300-8625 8-5/8 219.1 2 9.625 244.5 10.60 4.81 52.0 1320.8 95 6.6
EW300-10000 10 254.0 2 10.969 278.6 13.00 5.90 60.0 1524.0 80 5.5
EW300-10750 10-3/4 273.1 2 11.844 300.8 17.20 7.80 65.0 1651.0 75 5.2
EW300-12000 12 304.8 2 13.125 333.4 18.00 8.16 72.0 1828.8 70 4.8
EW300-12750 12-3/4 323.9 2 13.875 352.4 22.00 9.98 77.0 1955.8 65 4.5
EW300-14000 14 355.6 2 15.125 384.2 24.00 10.89 84.0 2133.6 60 4.1
EW300-16000 16 406.4 2 17.125 435.0 27.30 12.38 96.0 2438.4 50 3.4
EW300-18000 18 457.2 2 19.125 485.8 30.60 13.88 108.0 2743.2 45 3.1
WARNING! Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the
maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
!
