Water
SUPER-FLEX®

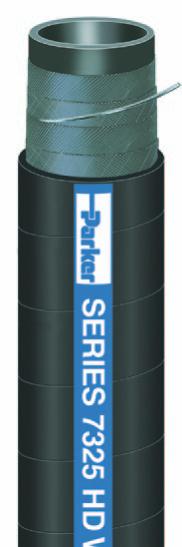

EPDM Heavy Duty Water Suction Hose
Series 7325
Series 7325 is a heavy duty, high pressure suction and discharge hose designed to
handle alkalies, brine, glycols, herbicides, mild chemicals, slurries and water. Te hose
construction incorporates a wire helix that provides full suction capability and kink
resistance, with a heavy wall and elevated working pressure for durability and superior
service. Te EPDM cover is resistant to abrasion, heat, mild chemicals and weathering.
Series 7325 is available in 200-foot continuous lengths.
Tube: Black EPDM
Reinforcement: Multiple textile plies with wire helix
Cover: Black EPDM; wrapped fnish
Temp. Range: -40°F to +212°F (-40°C to +100°C)
Brand Method: White text on blue stripe
Brand Example: PARKER SERIES 7325 HD WATER SUCTION 300 PSI MAX WP
MADE IN USA
Design Factor: 4:1
Industry Standards: None applicable
Applications: • Alkalies, brine, glycols, herbicides, mild chemicals, slurries, water
• Agriculture, construction, general industrial, irrigation surface mining
Vacuum: Full
Packaging: Coils
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Perm
Cplg
Rec
*
Std
Pack
Qty
(ft)
Stock
Status
**
7325-1500 1-1/2 38.1 4 2.094 53.2 1.07 0.48 6.0 152.4 300 20.7 * 100 Y
7325-2000 2 50.8 4 2.661 67.6 1.53 0.69 8.0 203.2 300 20.7 * 100 Y
7325-2500 2-1/2 63.5 4 3.228 82.0 2.11 0.96 10.0 254.0 300 20.7 TM 100 Y
7325-3000 3 76.2 4 3.700 94.0 2.39 1.08 12.0 304.8 300 20.7 * 100 N
* Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
WARNING! Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the
maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
!
