Water

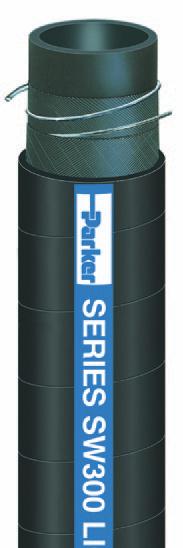

Lightweight Water Suction Hose
Series SW300
Series SW300 is a large diameter, lightweight suction and discharge hose for slurries and
water. Te hose construction incorporates a dual wire helix that provides full suction
capability and kink resistance. Te SBR cover is resistant to abrasion and weathering.
NOTE: For larger diameter hose, refer to Series EW300.
Tube: Black SBR
Reinforcement: Multiple textile plies with dual wire helix
Cover: Black SBR; wrapped fnish
Temp. Range: -40°F to +180°F (-40°C to +82°C)
Brand Method: Not branded
Design Factor: 4:1
Industry Standards: None applicable
Applications: • Slurries, water
• Construction, general industrial, surface mines
Vacuum: Full
Compare to: Gates Barracuda; Veyance Plicord Con-Ag Water S&D
Packaging: Coils
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Perm
Cplg
Rec
*
Std
Pack
Qty
(ft)
Stock
Status
**
SW300-6000 6 152.4 2 6.625 168.3 3.64 1.65 30.0 762.0 100 6.9 * 100 N
SW300-8000 8 203.2 4 9.188 233.4 11.07 5.02 48.0 1219.2 100 6.9 * 100 N
* Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
WARNING! Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the
maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
!
