Water
WALRUS™
EPDMWater Suction Hose
Series SW500

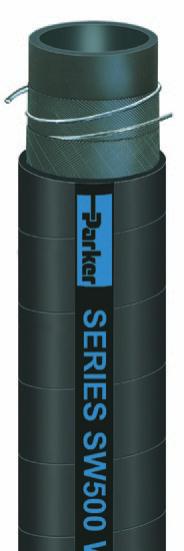

Series SW500 is a suction and discharge hose designed to handle alkalies, brine, glycols,
herbicides, mild chemicals, slurries and water. Te hose construction incorporates a dual
wire helix that provides full suction capability and kink resistance. Te EPDM cover is
resistant to abrasion, heat, mild chemicals and weathering.
Tube:
Black EPDM
Reinforcement:
Multiple textile plies with dual wire helix
Cover:
Black EPDM; wrapped fnish
Temp. Range:
-40°F to +200°F (-40°C to +93°C)
Brand Method:
Blue text on black stripe
Brand Example:
PARKER SERIES SW500 WALRUS™ EPDM WATER SUCTION HOSE
XXX PSI WP MADE IN USA
Design Factor:
4:1
Industry Standards:
None applicable
Applications:
• Alkalies, brine, glycols, herbicides, mild chemicals, slurries, water
•
Agriculture, construction, general industrial, irrigation, surface mining
Vacuum:
Full
Packaging:
Coils
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Perm
Cplg
Rec
*
Std
Pack
Qty
(ft)
Stock
Status
**
SW500-1500
1-1/2 38.1 2 1.875 47.6 0.53 0.24 6.0 152.4 200 13.8 *
100 Y
SW500-2000
2 50.8 2 2.438 61.9 0.76 0.34 8.0 203.2 150 10.3 *
100 Y
SW500-2500
2-1/2 63.5 2 2.938 74.6 1.14 0.52 11.0 279.4 150 10.3 *
100 N
SW500-3000
3 76.2 2 3.438 87.3 1.46 0.66 14.0 355.6 150 10.3 *
100 Y
SW500-4000
4 101.6 2 4.500 114.3 2.12 0.96 18.0 457.2 150 10.3 *
100 Y
SW500-6000
6 152.4 2 6.625 168.3 3.71 1.68 28.0 711.2 150 10.3 *
100 Y
* Couplings:
Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
**
Stock:
“Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
WARNING!
Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the
maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
!
