Water
SUPER-FLEX®
EPDMWater Suction Hose

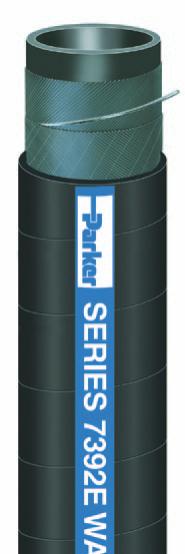

Series 7392E
Series 7392E is a lightweight suction and discharge hose designed to handle alkalies, brine,
glycols, herbicides, mild chemicals, slurries and water. Te hose construction incorporates
a wire helix that provides full suction capability and kink resistance. Te EPDM cover is
resistant to abrasion, heat, mild chemicals and weathering.
Tube: Black EPDM
Reinforcement: Multiple textile plies with wire helix
Cover: Black EPDM; wrapped fnish
Temp. Range: -40°F to +180°F (-40°C to +82°C)
Brand Method: White text on blue stripe
Brand Example: PARKER SERIES 7392E WATER SUCTION HOSE – XXX PSI MAX WP
Industry Standards: None applicable
Applications: • Alkalies, brine, glycols, herbicides, mild chemicals, slurries, water
• Agriculture, construction, general industrial, irrigation, surface mining
Vacuum: Full
Compare to: Gates Barracuda; Veyance Plicord Con-Ag Water S&D
Packaging: Coils
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Perm
Cplg
Rec
*
Std
Pack
Qty
(ft)
Stock
Status
**
7392E-1500 1-1/2 38.1 2 1.890 48.0 0.72 0.33 6.0 152.4 150 10.3 * 100 Y
7392E-2000 2 50.8 2 2.440 62.0 1.08 0.49 7.0 177.8 150 10.3 * 100 Y
7392E-2500 2-1/2 63.5 2 2.950 74.9 1.45 0.66 8.0 203.2 150 10.3 * 100 Y
7392E-3000 3 76.2 2 3.500 88.9 1.80 0.82 10.0 254.0 150 10.3 * 100 Y
7392E-4000 4 107.0 2 4.530 115.1 2.43 1.10 22.0 558.8 100 6.9 * 100 Y
7392E-6000 6 152.4 4 6.570 166.9 4.16 1.89 30.0 762.0 100 6.9 * 100 Y
* Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
WARNING! Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the
maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
!
