Water
SUPER-FLEX®
EPDMWater Suction Hose

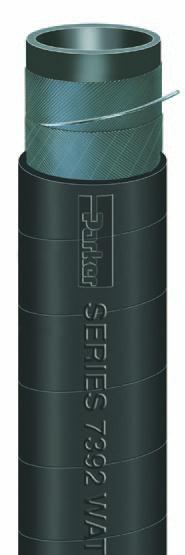

Series 7392
Series 7392 is a suction and discharge hose designed to handle alkalies, brine, glycols,
herbicides, mild chemicals, slurries and water. Te hose construction incorporates a wire
helix that provides full suction capability and kink resistance. Te EPDM cover is resistant
to abrasion, heat, mild chemicals and weathering. Series 7392 is available in 200-foot
continuous lengths.
Tube: Black EPDM
Reinforcement: Multiple textile plies with wire helix
Cover: Black EPDM; wrapped fnish
Temp. Range: -40°F to +212°F (-40°C to +100°C)
Brand Method: Embossed
Brand Example: PARKER SERIES 7392 WATER SUCTION & DISCHARGE MADE IN USA
Design Factor: 4:1
Industry Standards: None applicable
Applications: • Alkalies, brine, glycols, herbicides, mild chemicals, slurries, water
• Agriculture, construction, general industrial, irrigation, surface mining
Vacuum: Full
Compare to: Gates Barracuda; Veyance Plicord Con-Ag Water S&D
Packaging: Coils
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Perm
Cplg
Rec
*
Std
Pack
Qty
(ft)
Stock
Status
**
7392-1250 1-1/4 31.8 2 1.606 40.8 0.52 0.24 5.0 127.0 150 10.3 * 100 N
7392-1500 1-1/2 38.1 2 1.937 49.2 0.83 0.38 6.0 152.4 150 10.3 * 100 Y
7392-2000 2 50.8 2 2.425 61.6 1.04 0.47 7.0 177.8 150 10.3 * 100 Y
7392-2500 2-1/2 63.5 2 2.965 75.3 1.46 0.66 8.0 203.2 150 10.3 * 100 Y
7392-3000 3 76.2 2 3.528 89.6 2.00 0.91 10.0 254.0 150 10.3 * 100 Y
7392-4000 4 107.0 2 4.583 116.4 2.90 1.32 14.0 355.6 150 10.3 * 100 Y
7392-5000 5 127.0 2 5.669 144.0 4.16 1.89 22.0 558.8 100 6.9 * 100 N
7392-6000 6 152.4 4 6.831 173.5 6.22 2.82 30.0 762.0 100 6.9 * 100 Y
7392-600020 6 152.4 4 6.831 173.5 6.22 2.82 30.0 762.0 100 6.9 * 20 Y
7392-8000 8 203.2 4 8.921 226.6 9.32 4.23 38.0 965.2 100 6.9 * 50 N
7392-800020 8 203.2 4 8.921 226.6 9.32 4.23 38.0 965.2 100 6.9 * 20 N
7392-10000 10 254.0 4 10.984 279.0 12.22 5.54 50.0 1270.0 100 7.0 * 50 N
7392-12000 12 304.8 4 13.094 332.6 16.51 7.49 66.0 1676.4 100 7.0 * 50 N
* Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
WARNING! Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the
maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
!
