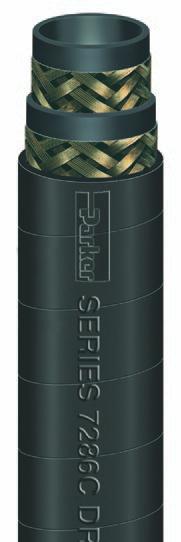

DRAGON BREATH
®
Chlorobutyl Compact SteamHose
Non-Skive E-Z Crimp
Series 7286C
Series 7286C is a compact, slim profle hose designed for long-lasting steam service—one
of the toughest applications for hose, where the hot-cold/wet-dry cycling attacks rubber
compounds externally as well as internally. Te hose construction incorporates premium,
high-performance chlorobutyl in both the tube and the cover, providing extreme heat
resistance, durability, performance and service life. Te wire braid reinforcement provides
crush-resistant durability, kink resistance and a path to conduct a static electrical charge
to ground, and the cover resists abrasion, cracking, hardening and ozone. Series 7286C is
qualifed with Parker non-skive crimp couplings for easy and quick assembly fabrication as
well as maintenance-free service.
Tube:
Black chlorobutyl
Reinforcement:
Multiple wire braids
Cover:
Black chlorobutyl; perforated wrapped fnish
Temp. Range:
-20°F to +406°F saturated steam/+450°F superheated steam
(-29°C to +208°C saturated steam/+232°C superheated steam)
Brand Method:
Embossed
Brand Example:
PARKER SERIES 7286C DRAGON BREATH
®
E-Z CRIMP BUTYL STEAM
250 PSI MAX WP MADE IN USA (DATE CODE)
Design Factor:
10:1
Industry Standards:
None applicable
Applications:
• Saturated and superheated steam
• Cleaning containment vessels and manufacturing equipment; cleaning
and heating process equipment
• Manufacturing and processing plants, refneries
Vacuum:
Not recommended
Packaging:
Cartons
WARNINGS!
Failure to properly inspect, maintain, test and use steam hose assemblies may result in property damage, personal injury or death. Refer to
ARPM publication IP-11-1, “Guide for Use, Testing and Inspection of Steam Hose.”
Water changes to hot water and phases of steam when subjected to heat and pressure. The greater the pressure, the higher the
temperature required to achieve and maintain a steam phase. If steam escapes, dangerous quantities of heat may be released very
suddenly. Exposure to hot water, low pressure steam and high pressure steam may cause severe scalding or fatal burns.
Use only hoses designated for steam service for steam applications.
Prior to use with detergents or rust inhibitors, refer to the chemical guide in this catalog or contact Parker.
Drain steam hose after each use to reduce the possibility of hose popcorning while in service.
Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working
pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
!
Part
Number
ID
(in)
ID
(mm)
Reinf
Braids
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Perm
Cplg
Rec
*
Std
Pack
Qty
(ft)
Stock
Status
**
7286C-502
1/2 12.7 2 0.950 24.1 0.37 0.17 7.0 177.8 250 17.2 71
50
Y
7286C-752
3/4 19.1 2 1.200 30.5 0.47 0.21 9.5 241.3 250 17.2 CS 50
Y
7286C-1002
1 25.4 2 1.467 37.3 0.64 0.29 12.0 304.8 250 17.2 CS 50
Y
* Couplings:
Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
**
Stock:
“Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
