Parker Industrial Hose Customer Service
866 810 HOSE (4673) 800 242 HOSE (4673)
Strongsville, OH
South Gate, CA
Eastern USA
Western USA
www.safehose.com
e-mail: indhose@parker.com
Steam
DRAGON BREATH
®
250
Oil Resistant SteamHose
Series 7288

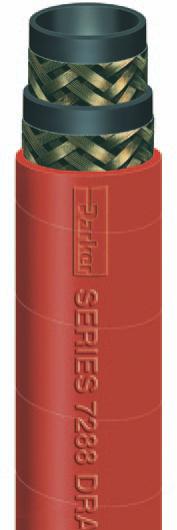

Series 7288 is a traditional oil resistant hose designed for long-lasting steam service, one
of the toughest applications for hose, where the hot/cold wet/dry cycling attacks rubber
compounds externally as well as internally. Te hose construction incorporates an EPDM
tube that resists heat and popcorning, and a wire braid reinforcement for crush-resistant
durability, kink resistance and a path to conduct a static electrical charge to ground. Te red
chloroprene cover is resistant to weathering and oil—an important criteria for oil refneries
and petrochemical plants—and provides color-coded identifcation.
Tube:
Black EPDM
Reinforcement:
Multiple wire braids
Cover:
ARPM Class B oil resistant red chloroprene; perforated wrapped fnish
Temp. Range:
-20°F to +406°F saturated steam/+450°F superheated steam
(-29°C to +208°C saturated steam/+232°C superheated steam)
Brand Method:
Embossed
Brand Example:
PARKER SERIES 7288 DRAGON BREATH
®
STEAM HOSE 250 PSI MAX
WP OIL RESISTANT MADE IN USA (DATE CODE)
Design Factor:
10:1
Industry Standards:
ARPM Class B oil resistant cover
Applications:
• Saturated and superheated steam
• Cleaning containment vessels and manufacturing equipment;
cleaning and heating process equipment
• Manufacturing and processing plants, refneries
Vacuum:
Not recommended
Compare to:
Boston Concord 250 OR; Gates 232MB Steam Queen;
Thermoid Burstproof Oil Resistant; Veyance Flexsteel 250 ORS
Packaging:
Cartons; Reels
Part
Number
ID
(in)
ID
(mm)
Reinf
Braids
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Perm
Cplg
Rec
*
Std
Pack
Qty
(ft)
Stock
Status
**
7288-502
1/2 12.7 2 1.031 26.2 0.52 0.24 7.0 177.8 250 17.2 43
50
Y
7288-502A
1/2 12.7 2 1.031 26.2 0.52 0.24 7.0 177.8 250 17.2 43 500 N
7288-752
3/4 19.1 2 1.343 34.1 0.73 0.33 9.5 241.3 250 17.2 CS, 43 50
Y
7288-752A
3/4 19.1 2 1.343 34.1 0.73 0.33 9.5 241.3 250 17.2 CS, 43 500 N
7288-1002
1 25.4 2 1.594 40.5 0.90 0.41 12.0 304.8 250 17.2 CS, 43 50
N
7288-1002A
1 25.4 2 1.594 40.5 0.90 0.41 12.0 304.8 250 17.2 CS, 43 500 N
* Couplings:
Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
**
Stock:
“Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
WARNINGS!
Failure to properly inspect, maintain, test and use steam hose assemblies may result in property damage, personal injury or death. Refer to
ARPM publication IP-11-1, “Guide for Use, Testing and Inspection of Steam Hose.”
Water changes to hot water and phases of steam when subjected to heat and pressure. The greater the pressure, the higher the
temperature required to achieve and maintain a steam phase. If steam escapes, dangerous quantities of heat may be released very
suddenly. Exposure to hot water, low pressure steam and high pressure steam may cause severe scalding or fatal burns.
Use only hoses designated for steam service for steam applications.
Prior to use with detergents or rust inhibitors, refer to the chemical guide in this catalog or contact Parker.
Drain steam hose after each use to reduce the possibility of hose popcorning while in service.
Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working
pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
!
