Parker Industrial Hose Customer Service
866 810 HOSE (4673) 800 242 HOSE (4673)
Strongsville, OH
South Gate, CA
Eastern USA
Western USA
www.safehose.com
e-mail: indhose@parker.com
Steam
MPW-1000
®
High Pressure Wire Braid Multipurpose Hose
Oil Resistant Non-Skive E-Z Crimp

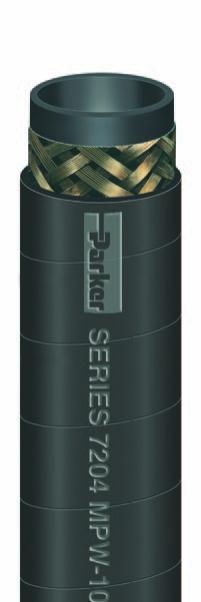

Series 7204
Series 7204 is an extremely versatile hose designed to handle air, mild chemicals, oil, refned
fuels such as biodiesel (to B20 in dedicated and non-dedicated service), diesel, ethanol
and gasoline, saturated steam and water. Te hose construction incorporates a premium
grade tube especially suited for high temperature materials such as hot asphalt, glue, oil, tar
and wax to 300°F continuous/350°F intermittent (149°C/177°C). Te high tensile wire braid
reinforcement provides durability, kink resistance, high pressure capability and superior
coupling retention, and the cover is resistant to heat, oil and weathering. Series 7204 is also
designed for saturated steam applications at temperatures to 368°F (187°C) and pressures to
150 psi (10.3 bar). Te tube resists popcorning and oil-based detergents and rust inhibitors
found in steam systems.
NOTES:
• Refer to the table on pages 213-214 for fuel compatibility and service conditions.
• Do not use for fuel dispensing or service applications requiring API, NFPA, UL,
ULC or any other agency approval or listing.
Tube:
Black nitrile
Reinforcement:
One wire braid
Cover:
Black chloroprene; perforated wrapped fnish
Temp. Range:
Steam:
-20°F to +368°F (-29°C to +187°C) saturated steam to 150 psi
max WP
Other:
-20°F to +300°F (-29°C to +149°C)/+350°F (+177°C) intermittent
Brand Method:
Embossed
Brand Example:
PARKER SERIES 7204 MPW-1000 PSI MAX WP (150 PSI MAX WP -
STEAM) (DATE CODE) MADE IN USA
Design Factor:
4:1 (10:1 steam @ 150 psi)
Industry Standards:
None applicable
Applications:
• Air, mild chemicals, oil, water; hot asphalt, glue, oil, tar and wax;
steam; biodiesel (to B20 in dedicated and non-dedicated service),
diesel, ethanol, gasoline
•
High pressure washdown; cleaning containment vessels and
manufacturing equipment; cleaning and heating process equipment
• General industrial, manufacturing and processing plants, refneries
Vacuum:
Not recommended
Compare to:
Boston Hot Tar Pumping; Gates 319MB Gold Master; Veyance Pyrofex
Packaging:
Reels
WARNINGS!
Failure to properly inspect, maintain, test and use steam hose assemblies may result in property damage, personal injury or death. Refer to
ARPM publication IP-11-1, “Guide for Use, Testing and Inspection of Steam Hose.”
Water changes to hot water and phases of steam when subjected to heat and pressure. The greater the pressure, the higher the
temperature required to achieve and maintain a steam phase. If steam escapes, dangerous quantities of heat may be released very
suddenly. Exposure to hot water, low pressure steam and high pressure steam may cause severe scalding or fatal burns.
Use only hoses designated for steam service for steam applications.
Prior to use with detergents or rust inhibitors, refer to the chemical guide in this catalog or contact Parker.
Drain steam hose after each use to reduce the possibility of hose popcorning while in service.
Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working
pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
!
(Continued on the following page)
