Specialty
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec WP
(psi)
Max
Rec WP
(bar)
Perm
Cplg
Rec
*
Std
Pack
Qty
(ft)
Stock
Status
**
39553
3/16 4.8
2 0.406 10.3 0.07 0.03 2.0 50.8 75 5.2
*
250 Y
39550
1/4 6.4
2 0.500 12.7 0.10 0.05 2.0 50.8 50 3.4
*
250 Y
39551
5/16 7.9
2 0.563 14.3 0.11 0.05 3.0 76.2 50 3.4
*
250 Y
39552
3/8 9.5
2 0.625 15.9 0.14 0.06 3.5 88.9 50 3.4
*
250 Y
39554
1/2 12.7 2 0.781 19.8 0.17 0.08 4.0 101.6 35 2.4
*
250 N
* Couplings:
Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
**
Stock:
“Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.

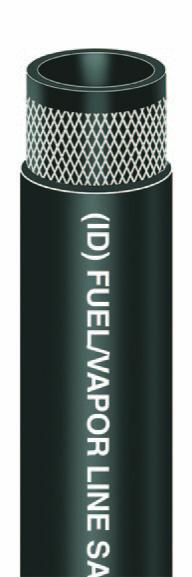

Fuel Line/Vapor Emission Hose
SAE J30R7
Series 395
Series 395 is a fuel line/vapor emission hose for refned fuels such as biodiesel (to B20 in
dedicated and non-dedicated service), diesel, ethanol and gasoline. Te hose is fexible for
easy routing in and around small engines and small engine compartments, and the cover is
resistant to abrasion, oil and weathering.
NOTES:
• Refer to the table on pages 213-214 for fuel compatibility and service conditions.
• Do not use in marine fuel applications. Refer to Series 7165 on page 308.
Tube:
Black nitrile
Reinforcement:
Multiple textile plies
Cover:
Black chloroprene; smooth fnish
Temp. Range:
-40°F to +257 °F (-40°C to +125°C)
Brand Method:
White ink
Brand Example:
(ID) FUEL/VAPOR LINE SAE J30R7 (DATE CODE)
Design Factor:
5:1
Industry Standards:
SAE J30R7
Applications:
• Low pressure fuel lines, vapor emission service
• Biodiesel (to B20 in dedicated and non-dedicated service), diesel,
ethanol, gasoline
• Agricultural equipment, autos, buses, construction equipment,
off-road equipment
Vacuum:
24" Hg (3/16" ID through 3/8" ID); 10" Hg (1/2" ID)
Compare to:
Thermoid Fueling, Vapor Emission and Crankcase Ventilation SAE 30R7
Packaging:
Coils
WARNING!
Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the
maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
!
