Specialty
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec WP
(psi)
Max
Rec WP
(bar)
Perm
Cplg
Rec
*
Std
Pack
Qty
(ft)
Stock
Status
**
39703 3/16 4.7 1 0.438 11.1 0.06 0.03 1.3 33.0 100 6.9 55 250 Y
39704 1/4 6.4 1 0.500 12.7 0.09 0.04 1.5 38.1 100 6.9 HY 250 Y
39705 5/16 7.9 1 0.562 14.2 0.11 0.05 2.0 50.8 100 6.9 HY 250 Y
39706 3/8 9.5 1 0.625 15.9 0.12 0.05 2.5 63.5 100 6.9 HY 250 Y
39708 1/2 12.7 1 0.828 17.7 0.18 0.08 4.0 101.6 100 6.9 HY 250 Y
39710 5/8 15.9 2 0.938 23.9 0.23 0.10 5.0 127.0 35 2.4 * 250 N
39712 3/4 19.1 2 1.125 28.6 0.33 0.15 6.0 152.4 35 2.4 * 250 N
* Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.

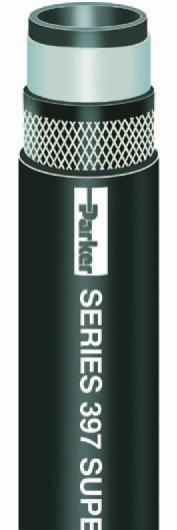

SUPER-FLEX® FL
Barrier Fuel Line Hose
CARB/SORE; EPA; SAE J30R7/30R14T2 Performance
Series 397
Series 397 is a fuel line/vapor emission hose for refned fuels such as biodiesel (to B100 in
dedicated and non-dedicated service), diesel, ethanol and gasoline. Te hose incorporates
a thermoplastic barrier to resist permeation and the cover is resistant to abrasion, oil and
weathering. Te hose is fexible for easy routing in and around small engines and small engine
compartments. Series 397 surpasses all of the California Air Resource Board (CARB)/Small
Of-Road Engine (SORE) and Environmental Protection Agency (EPA) stringent permeation
requirements of 15g/m2/day, and provides SAE J30R7/30R14T2 performance.
NOTES: • Refer to the table on pages 213-214 for fuel compatibility and service conditions.
• Do not use in marine fuel applications. Refer to Series 7165 on page 308.
Tube: Black nitrile and translucent thermoplastic barrier
Reinforcement: One textile braid or multiple textile plies
Cover: Black CPE, smooth fnish
Temp. Range: -30°F to +257°F (-34°C to +125°C)
Brand Method: White ink
Brand Example: PARKER SERIES 397 (P/N) SUPER-FLEX® FL (ID) LOW PERMEATION
FUEL LINE CARB (x)PKHPLINE397 EPA COMPLIANT EPA COMPLIANT
15 g/m2/day C-U-06-010 MAX WP 100 PSI USA (DATE CODE)
NOTE: (x) changes every year
Design Factor: 5:1
Industry Standards: CARB 2006 SORE, EPA, SAE J30R7 (Performance)
Applications: • Low pressure fuel lines on blowers, grinders, mowers, off-road
engines, pressure washers, saws
• Biodiesel (to B100 in dedicated and non-dedicated service), diesel,
ethanol, gasoline
• Agricultural equipment, autos, buses, construction equipment,
off-road equipment
Vacuum: 24" Hg (3/16" through 3/8" ID); 10" Hg (1/2" through 3/4" ID)
Compare to: Avon Greenbar, Mark IV PermaSeal
Packaging: Reels
WARNING! Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the
maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
!
