290
Parker Industrial Hose Customer Service
866 810 HOSE (4673) 800 242 HOSE (4673)
Strongsville, OH
South Gate, CA
Eastern USA
Western USA
www.safehose.com
e-mail: indhose@parker.com
Specialty
Part
Number
ID
(in)
ID
(mm)
Reinf
Braids
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Perm
Cplg
Rec
*
Std Pack
Qty
(ft)
Stock
Status
**
7243-251
1/4 6.4 1 0.581 14.8 0.13 0.06 1.7 43.2 350 24.1 HY 500
N
7243-311
5/16 7.9 1 0.675 17.1 0.18 0.08 2.0 50.8 350 24.1 HY 500
Y
7243-401
13/32 10.3 1 0.766 19.5 0.21 0.10 2.3 58.4 350 24.1 *
500
N
7243-501
1/2 12.7 1 0.922 23.4 0.29 0.13 2.8 71.1 350 24.1 *
500
N
* Couplings:
Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
**
Stock:
“Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.

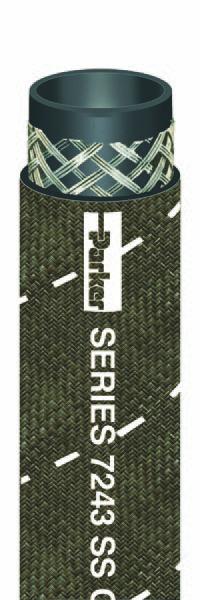

LP Gas Hose
Stainless Steel Reinforced – Textile Cover
UL21
Series 7243
Series 7243 is a textile-covered, small diameter, extremely durable liquefed petroleum
gas (LPG)/propane transfer hose in applications such as fuel line hose on forklifts and
utility equipment. Te hose meets all Underwriter Laboratories (UL21) requirements.
Te hose construction incorporates high tensile stainless steel braided reinforcement for
superior strength, durability and kink resistance. Te textile cover is resistant to abrasion,
mild chemicals, and ozone. Series 7243 is qualifed with Parker crimp couplings and is
compatible with Parker Series 20 feld reattachable fttings.
NOTE:
Refer to the Safety and Technical section of this catalog for safety, handling and use
information.
Series 7243 and Natural Gas:
Te molecules of natural gas are small, enhancing their
ability to permeate through standard rubber hose constructions. Te permeation process is
more rapid as the working pressure increases, and natural gas accumulates with potentially
dangerous consequences. Series 7243 may be used for natural gas service, but ONLY under
ALL of the following conditions:
• Te application must be in a well-ventilated environment: Outdoors, or indoors with
signifcant continuous air movement.
• Series 7243 is not to replace fxed/rigid pipe where that material ismore appropriate due
to reduced permeation and overall strength and durability. Use rigid pipe, non-permeable
tubing or hose with barrier constructions to convey natural gas whenever possible.
Series 7243 and Compressed Natural Gas (CNG):
Series 7243 is not to be used for any
CNG application, including fuel dispensing, on-board vehicle fuel lines, or fuel transfer.
Tube:
Black nitrile
Reinforcement:
One stainless steel braid
Cover:
Black chloroprene-impregnated textile braid
Temp. Range:
-40°F to +180°F (-40°C to +82°C) (The hose construction is capable of
this rating, but LP Gas should NEVER be conveyed over 140°F/60°C)
Brand Method:
White ink with dashed spiral stripe
Brand Example:
Side one:
PARKER SERIES 7243 SS CAUTION LP GAS HOSE MH6737
U  
®
ISSUE NO. XXXX 350 PSI MAX WP (DATE CODE)
Side Two:
CAUTION FOR LP GAS USE ONLY 1750 PSI MIN BURST
Design Factor:
5:1
Industry Standards:
UL21
Applications:
• LP gas/propane
• Fork lifts
Vacuum:
Not recommended
Compare to:
Gates Stainless Steel LPG
Packaging:
Reels
Couplings:
Parker Series 20 reattachable
R
WARNING!
Use
only with couplings
qualifed by Parker.
Do not use with male
swivel couplings
or other couplings
containing o-rings,
which may dry out,
crack and fail over
time.
!
