Specialty

Part

Number

ID

(in)

ID

(mm)

Reinf

Plies

OD

(in)

OD

(mm)

Approx

Wt

(lbs/ft)

Approx

Wt

(kg/ft)

Min

Bend

Rad

(in)

Min

Bend

Rad

(mm)

Max

Rec WP

(psi)

Max

Rec

WP

(bar)

Perm

Cplg

Rec

*

Std

Pack

Qty

(ft)

Stock

Status

**

38903

3/16 4.8

2 0.406 10.3 0.06 0.03 1.3 33.0 50 3.4 55 250 Y

38904

1/4 6.4

2 0.500 12.7 0.09 0.04 1.5 38.1 50 3.4 HY 250 Y

38905

5/16 7.9

2 0.562 14.3 0.11 0.05 2.0 50.8 50 3.4 HY 250 Y

38906

3/8 9.8

2 0.625 15.8 0.12 0.05 2.5 63.5 50 3.4 HY 250 Y

38908

1/2 12.7 2 0.781 19.8 0.18 0.08 4.0 101.6 50 3.4 HY 250 Y

38910

5/8 15.9 2 0.938 23.9 0.24 0.11 5.0 127.0 35 2.4

*

250 N

38912

3/4 19.1 2 1.125 28.6 0.35 0.16 6.0 152.4 35 2.4

*

250 N

* Couplings:

Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.

**

Stock:

“Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.

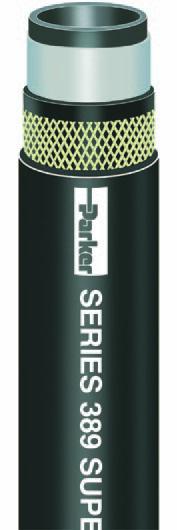

SUPER-FLEX

®

FL-7

Barrier Fuel Line Hose

CARB/SORE; EPA; SAE J30R7/30R14T2

Series 389

Series 389 is a fuel line/vapor emission hose for refned fuels such as biodiesel (to B20 in

dedicated and non-deicated service), diesel, ethanol and gasoline. Te hose incorporates

a THV barrier to resist permeation, multiple aramid plies of reinforcement for coupling

retention, durability and and kink resistance, and the cover is resistant to abrasion, oil and

weathering. Te hose is fexible for easy routing in and around small engines and small engine

compartments. Series 389 surpasses all of the California Air Resource Board (CARB)/Small

Of-Road Engine (SORE) and Environmental Protection Agency (EPA) stringent permeation

requirements of 15g/m

2

/day. It also meets or exceeds SAE J30R7 and SAE J30R14T2

specifcations, and is compatible with Parker SAE J2044 and J2045 Push-to-Connect fttings.

NOTES: •

Refer to the table on pages 213-214 for fuel compatibility and service conditions.

•

Do not use in marine fuel applications. Refer to Series 7165 on page 308.

Tube:

Black nitrile and translucent THV barrier

Reinforcement:

Multiple aramid plies

Cover:

Black CPE, smooth fnish

Temp. Range:

-40°F to + 257 °F (-40°C to +125°C)

Brand Method:

White ink

Brand Example:

PARKER SERIES 389 SUPER-FLEX

®

FL-7 (ID) SAE J30R7/R14T2 FUEL

LINE (

x

)PKHPLINE389 EPA COMPLIANT 15 g/m

2

/day CARB Q-08-013

MAX WP 50 PSI USA (DATE CODE)

NOTE: (x)

changes every year

Design Factor:

5:1

Industry Standards:

CARB 2006 SORE, EPA, SAE J30R7, SAE J30R14T2,

Applications:

• Low pressure fuel lines on blowers, grinders, mowers, off-road

engines, pressure washers, saws

• Biodiesel (to B20 in dedicated and non-dedicated service), diesel,

ethanol, gasoline

• Agricultural equipment, autos, buses, construction equipment,

off-road equipment

Vacuum:

24" Hg (3/16" through 3/8" ID); 10" Hg (1/2" through 3/4" ID)

Compare to:

Avon Greenbar 700, Gates 4219B

Packaging:

Reels

WARNING!

Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the

maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.

!
