286 Parker Industrial Hose Customer Service
866 810 HOSE (4673) 800 242 HOSE (4673)
Strongsville, OH South Gate, CA
Eastern USA Western USA
www.safehose.com
e-mail: indhose@parker.com
Specialty
Bulk Hose
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Perm
Cplg
Rec
*
Std
Pack
Qty
(ft)
Stock
Status
**
7215-750 3/4 19.1 2 1.060 27.0 0.25 0.11 4.5 115.0 150 10.3 HBL-C 131 N
* Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
Hose Assemblies
Part
Number
ID
(in)
ID
(mm)
Length
(ft)
Length
(mtrs)
Approx
Wt
(lbs/ea)
Approx
Wt
(kg/ea)
Max
Rec WP
(psi)
Max
Rec WP
(bar)
Coupling
Combination
Std
Pack
Qty
(ea)
Stock
Status
**
72153PRBK-48 3/4 19.1 4 1.22 2.25 1.03 150 10.3 SS Rigid BSPP
w/Seal, Each End
1 N
72153PRNK-48 3/4 19.1 4 1.22 2.25 1.03 150 10.3 SS Rigid Male NPT,
Each End
1 N
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.

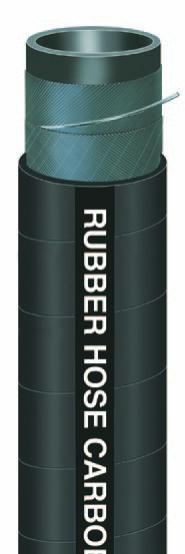

CARBOBLUE™
DEF Suction Hose
Series 7215
Series 7215 is designed for suction and transfer transfer service of diesel exhaust fuid (DEF)
between storage tanks and dispensers for the on-board selective catalytic reduction (SCR)
system of buses, heavy trucks and of-road vehicles used in agricultural, construction and
material handling applications. Te hose construction incorporates a specially formulated
EPDM tube, a helix wire that provides full suction capability and kink resistance, and an
EPDM cover that is resistant to abrasion, mild chemicals and ozone.
NOTES: • To avoid DEF contamination, use only hose designed for the application, and
stainless steel couplings to fabricate hose assemblies.
• Do not use for oil or fuel service.
Tube: Black EPDM, peroxide cured
Reinforcement: Multiple textile plies with wire helix
Cover: Black EPDM; wrapped fnish
Temp. Range: -40°F to +212°F (-40°C to +100°C)
Brand Method: White text on black stripe
Brand Example: RUBBER HOSE CARBOBLUE SM 10 BAR MADE IN ITALY PARKER ITR
Design Factor: 3:1
Industry Standards: None applicable
Applications: • DEF fuids, urea
• Suction and transfer, tank to pump
• Agriculture, construction, transportation
Vacuum: Full
Packaging: Coils, cartons
WARNING! Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the
maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
!
