Specialty

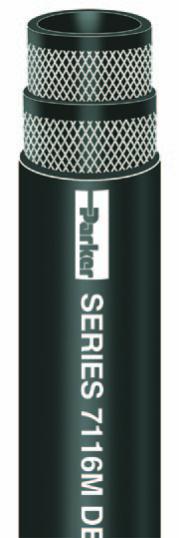

SOFT-FLEX™
DEF Dispenser Hose
Series 7116M
Series 7116M is designed to dispense or transfer diesel exhaust fuid (DEF) into the on-
board selective catalytic reduction (SCR) system of buses, heavy trucks and of-road
vehicles used in agricultural, construction and material handling applications. Te hose
construction incorporates a specially formulated EPDM tube and multiple plies of textile
reinforcement for fexibility and kink resistance. Te EPDM cover is resistant to abrasion,
mild chemicals and ozone.
NOTES: • To avoid DEF contamination, use only hose designed for the application, and
stainless steel couplings to fabricate hose assemblies.
• Do not use for oil or fuel service.
Tube: Black EPDM, peroxide cured
Reinforcement: Multiple textile plies
Cover: Black EPDM; smooth fnish
Temp. Range: -40°F to +212°F (-40°C to +100°C)
Brand Method: White ink
Brand Example: PARKER SERIES 7116M DEF SOFT-FLEX™ (ID) MAX WP 150 PSI MADE
IN USA (DATE CODE)
Design Factor: 4:1
Industry Standards: None applicable
Applications: • DEF fuids, urea
• Dispensing for buses, trucks, mobile equipment
• Agriculture, construction, transportation
Vacuum: Not recommended
Compare to: Flextral PE60; Veyance DEF Dispensing Hose
Packaging: Reels, cartons
Bulk Hose
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Perm
Cplg
Rec
*
Std
Pack
Qty
(ft)
Stock
Status
**
7116M-500 1/2 12.7 4 0.893 22.7 0.24 0.11 5.0 127.0 150 10.3 * 550 N
7116M-750 3/4 19.1 4 1.156 29.4 0.34 0.15 6.0 152.4 150 10.3 HBL-C 400 Y
7116M-1000 1 25.4 4 1.429 36.3 0.46 0.21 8.0 203.2 150 10.3 * 300 N
* Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
WARNING! Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the
maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
!
Hose Assemblies
Part
Number
ID
(in)
ID
(mm)
Length
(ft)
Length
(mtrs)
Approx
Wt
(lbs/ea)
Approx
Wt
(kg/ea)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Coupling
Combination
Std
Pack
Qty
(ea)
Stock
Status
**
71163PRBK-144 3/4 19.1 12 3.66 4.37 1.98 150 10.3 SS Rigid BSPP w/Seal, Each End 1 Y
71163PRBK-180 3/4 19.1 15 4.57 5.58 2.53 150 10.3 SS Rigid BSPP w/Seal, Each End 1 Y
71163PRNK-144 3/4 19.1 12 3.66 4.37 1.98 150 10.3 SS Rigid Male NPT, Each End 1 Y
71163PRNK-180 3/4 19.1 15 4.57 5.58 2.53 150 10.3 SS Rigid Male NPT, Each End 1 Y
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
