272 Parker Industrial Hose Customer Service
866 810 HOSE (4673) 800 242 HOSE (4673)
Strongsville, OH South Gate, CA
Eastern USA Western USA
www.safehose.com
e-mail: indhose@parker.com
PVC
GULLY WASHER®
Medium Duty Lay Flat
PVC Water Discharge Hose
MSHA
Series 7542
Series 7542 medium duty lay fat PVC discharge hose is designed as a lightweight, medium
duty hose for mild chemicals and water. Te lay fat construction rolls up fat for easy
handling, storage and transportation in agriculture, construction, general industrial
and mining applications. Te bright red fame resistant modifed cover meets MSHA
requirements and is also resistant to abrasion, mild chemicals, ultraviolet light and
weathering.
Tube: Red nitrile / PVC
Reinforcement: Multiple textile plies
Cover: Red PVC
Temp. Range: +14°F to +140°F (-10°C to +60°C)
Working pressures are at +68°F (+20°C). Higher temperatures reduce the
available working pressure. See temperature/pressure chart on page 445.
Brand Method: White ink

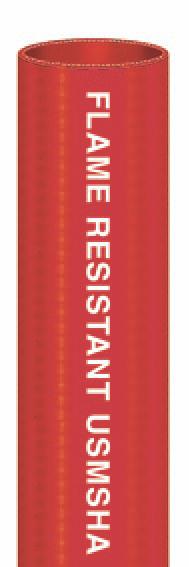

Brand Example: FLAME RESISTANT USMSHA #
Design Factor: 3:1
Industry Standards: MSHA
Applications: • Mild chemicals, water
• Agriculture, construction, general industrial, mining
Vacuum: Not recommended
Compare to: Jason 4510; Kuriyama Ironsides; Petzetakis 11298; Sun-Flow SF-30,
SF-50
Packaging: Coils
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
Wall
Thickness
(in)
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Max
Rec WP
@ 68°F
(psi)
Max
Rec WP
@ 20°C
(bar)
Std
Pack Qty
(ft)
Stock
Status
**
7542-1501 1-1/2 38.1 3 0.079 1.658 42.1 0.20 0.09 150 10.3 300 Y
7542-2001 2 50.8 3 0.083 2.166 55.0 0.30 0.14 150 10.3 300 Y
7542-2501 2-1/2 63.5 3 0.091 2.682 68.1 0.40 0.18 150 10.3 300 Y
7542-3001 3 76.2 3 0.091 3.182 80.8 0.52 0.24 150 10.3 300 Y
7542-4001 4 101.6 3 0.102 4.204 106.8 0.74 0.34 150 10.3 300 Y
7542-6001 6 152.4 3 0.114 6.228 158.2 1.25 0.57 120 8.3 300 Y
7542-8001 8 203.2 3 0.120 8.240 209.3 1.89 0.86 100 7.0 300 Y
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
! !
WARNINGS!
„ Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working
pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
„ Working pressures are at +68°F (+20°C). Higher temperatures reduce the available working pressure. See temperature/pressure chart on
page 445.
!
!
