Parker Industrial Hose Customer Service
866 810 HOSE (4673) 800 242 HOSE (4673)
Strongsville, OH
South Gate, CA
Eastern USA
Western USA
www.safehose.com
e-mail: indhose@parker.com
PVC
GULLY WASHER
®
Heavy Duty Lay Flat
PVC Water Discharge Hose
MSHA
Series 7545

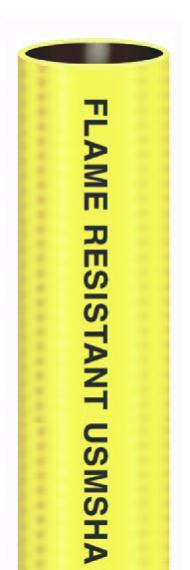

Series 7545 heavy duty lay fat PVC discharge hose is designed as a lightweight, heavy duty
hose for mild chemicals and water. Te lay fat construction rolls up fat for easy handling,
storage and transportation in agriculture, construction, general industrial and mining
applications. Te bright yellow fame resistant modifed cover meets MSHA requirements
and is also resistant to abrasion, mild chemicals, ultraviolet light and weathering.
Tube:
Black nitrile / PVC
Reinforcement:
Multiple textile plies
Cover:
Yellow PVC
Temp. Range:
+14°F to +140°F (-10°C to +60°C)
Working pressures are at +68°F (+20°C). Higher temperatures reduce the
available working pressure. See temperature/pressure chart on page 445.
Brand Method:
Black ink
Brand Example:
FLAME RESISTANT USMSHA #
Design Factor:
3:1
Industry Standards:
MSHA
Applications:
• Mild chemicals, water
• Agriculture, construction, general industrial, mining
Vacuum:
Not recommended
Compare to:
Jason 4520; Petzetakis 11294; Sun-Flow SF-20; Veyance Spiralfex 2700,
Brigade
Packaging:
Coils
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
Wall
Thickness
(in)
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Max
Rec WP
@ 68°F
(psi)
Max
Rec WP
@ 20°C
(bar)
Std
Pack Qty
(ft)
Stock
Status
**
7545-1501
1-1/2 38.1 3
0.110 1.720 43.7 0.32 0.15 230 15.9 300
Y
7545-2001
2 50.8 3
0.110 2.220 56.4 0.42 0.19 230 15.9 300
Y
7545-2501
2-1/2 63.5 3
0.122 2.744 69.7 0.56 0.25 230 15.9 300
Y
7545-3001
3 76.2 3
0.122 3.244 82.4 0.68 0.31 175 12.1 300
Y
7545-4001
4 101.6 3
0.134 5.474 139.0 1.01 0.46 160 11.0 300
Y
7545-6001
6 152.4 3
0.157 6.314 160.4 1.85 0.84 150 10.3 300
Y
7545-8001
8 203.2 3
0.157 8.314 211.2 2.68 1.22 150 10.3 300
N
**
Stock:
“Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
!
!
WARNINGS!
Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working
pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
Working pressures are at +68°F (+20°C). Higher temperatures reduce the available working pressure. See temperature/pressure chart on
page 445.
!
!
