PVC
GULLY WASHER
®

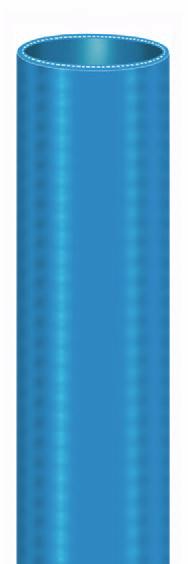

Standard Duty Lay Flat
PVC Water Discharge Hose
Series 7541
Series 7541 standard duty lay fat PVC discharge hose is designed as a lightweight, standard
duty hose for mild chemicals and water. Te lay fat construction rolls up fat for easy
handling, storage and transportation in agriculture, construction, general industrial and
mining applications. Te cover is resistant to abrasion, mild chemicals, ultraviolet light and
weathering.
Tube:
Blue nitrile / PVC
Reinforcement:
Multiple textile plies
Cover:
Blue PVC
Temp. Range:
+14°F to +140°F (-10°C to +60°C)
Working pressures are at +68°F (+20°C). Higher temperatures reduce the
available working pressure. See temperature/pressure chart on page 445.
Brand Method:
Not branded
Design Factor:
3:1
Industry Standards:
None applicable
Applications:
• Mild chemicals, water
• Agriculture, construction, general industrial, mining
Vacuum:
Not recommended
Compare to:
Gates Master-Flex 500; Kanafex 4501, 4502; Kuriyama NuFlo, VinylFlow;
Petzetakis 11252; Sun-Flow SF-10; Superfex DH; Veyance Spiralfex
Packaging:
Coils
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
Wall
Thickness
(in)
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Max
Rec WP
(psi)
@ 68°F
Max
Rec WP
(bar)
@ 20°C
Std
Pack Qty
(ft)
Stock
Status
**
7541-1501
1-1/2 38.1 3
0.051 1.602 40.7 0.13 0.06
80
5.5
300
Y
7541-2001
2 50.8 3
0.051 2.102 53.4 0.16 0.07
80
5.5
300
Y
7541-2501
2-1/2 63.5 3
0.051 2.606 66.2 0.21 0.10
65
4.5
300
Y
7541-3001
3 76.2 3
0.053 3.110 79.0 0.24 0.11
60
4.1
300
Y
7541-4001
4 101.6 3
0.060 4.120 104.6 0.36 0.16
45
3.1
300
Y
7541-6001
6 152.4 3
0.065 6.140 156.0 0.63 0.29
40
2.8
300
Y
7541-8001
8 204.0 3
0.070 8.140 206.8 1.10 0.50
40
2.8
300
Y
**
Stock:
“Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
!
!
WARNINGS!
Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working
pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
Working pressures are at +68°F (+20°C). Higher temperatures reduce the available working pressure. See temperature/pressure chart on
page 445.
!
!
