DYNAFLEX™
Clear Corrugated PVC Suction Hose
FDA
Series 7563

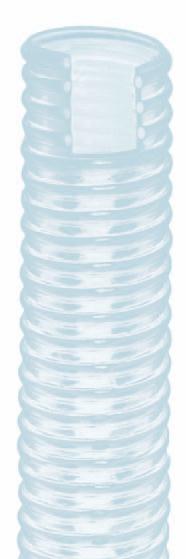

Series 7563 is a fexible, lightweight PVC suction and discharge hose for dry abrasive
materials such as debris, grains, granules, pellets and powders; non-fatty and non-oily
foods, liquids and sanitary products; and potable water in a variety of transfer applications.
Te hose features a smooth tube that is abrasion resistant and will not impart taste or odor,
and allows full-fow. Te lightweight construction incorporates a PVC helix that provides
full suction capability and kink resistance, and the clear PVC hose wall permits visual
observation of materials being conveyed.
NOTE:
Do not use in applications where a static charge may develop unless externally
grounded.
Tube:
Clear PVC; smooth fnish
Reinforcement:
Clear PVC helix
Cover:
Clear PVC, corrugated fnish; clockwise/right hand orientation
Temp. Range:
+5°F to +140°F (-15°C to +60°C)
Working pressures are at +68°F (+20°C). Higher temperatures reduce the
available working pressure. See temperature/pressure chart on page 445.
Brand Method:
Not branded
Design Factor:
3:1
Industry Standards:
FDA
Applications:
• Debris and dry abrasive materials; four, grains, granules, pellets,
potable water, powders, sugar
•
Liquids, non-fatty and non-oily foods
• Agriculture, construction, marine, in-plant transfer, delivery, transport
Vacuum:
See below
Compare to:
Gates 201 CR; Jason 4660; Kanafex 200 SFG; Kuriyama WT; Pacifc
Echo 145; Petzetakis 12426SE; Superfex 9000; Veyance Nutrifex
Packaging:
Coils
Part
Number
ID
(in)
ID
(mm)
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec WP
@ 68°F
(psi)
Max
Rec WP
@ 20°C
(bar)
Vacuum
Hg
(in)
Std
Pack
Qty
(ft)
Stock
Status
**
7563-1000
1
25.4 1.220 31.0 0.17 0.08 2.0 50.8 55
3.8
24 100
Y
7563-1250
1-1/4 31.8 1.480 37.6 0.21 0.10 3.0 76.2 50
3.4
24 100
Y
7563-1500
1-1/2 38.1 1.840 46.7 0.34 0.15 3.0 76.2 50
3.4
24 100
Y
7563-2000
2
50.8 2.360 59.9 0.50 0.23 4.0 101.6 40
2.8
24 100
Y
7563-2500
2-1/2 63.5 2.870 72.9 0.68 0.31 5.0 127.0 40
2.8
24 100
Y
7563-3000
3
76.2 3.500 88.9 1.00 0.45 6.0 152.4 40
2.8
24 100
Y
7563-4000
4 101.6 4.640 117.9 1.52 0.69 8.0 203.2 35
2.4
24 100
N
7563-6000
6 152.4 6.500 165.1 3.00 1.36 12.0 304.8 30
2.1
24 100
N
**
