PVC
DYNAFLEX™
Clear PVC Suction Hose
FDA
Series 7564

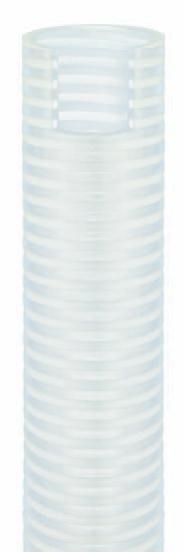

Series 7564 is a PVC suction and discharge hose for dry abrasive materials such as debris,
grains, granules, pellets and powders; non-fatty and non-oily foods, liquids and sanitary
products; and potable water in a variety of transfer applications. Te hose features a smooth
tube that is abrasion resistant and will not impart taste or odor, and allows full-fow. Te
lightweight construction incorporates a white PVC helix that provides full suction capability
and kink resistance, and the translucent PVC hose wall permits visual observation of
materials being conveyed.
NOTE:
Do not use in applications where a static charge may develop unless externally
grounded.
Tube:
Clear PVC; smooth fnish
Reinforcement:
White PVC helix
Cover:
Clear PVC; smooth fnish
Temp. Range:
+23°F to +140°F (-5°C to +60°C)
Working pressures are at +68°F (+20°C). Higher temperatures reduce the
available working pressure. See temperature/pressure chart on page 445.
Brand Method:
Not branded
Design Factor:
3:1
Industry Standards:
FDA
Applications:
• Debris and dry abrasive materials; four, grains, granules, pellets,
potable water, powders, sugar
•
Liquids, non-fatty and non-oily foods
• Agriculture, construction, marine, in-plant transfer, delivery, transport
Vacuum:
See below
Compare to:
Gates 101 CL, 200 CL; Jason 4606; Kuriyama H; Pacifc Echo 090, 115;
Superfex 1000CL; Veyance Nutrifow
Packaging:
Coils
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec WP
@ 68°F
(psi)
Max
Rec WP
@ 20°C
(bar)
Vacuum
Hg
(in)
Std
Pack
Qty
(ft)
Stock
Status
**
7564-500
1/2 12.7 n/a 0.750 19.1 0.12 0.05 2.5 63.5 120 8.3 28 100 N
7564-750
3/4 19.1 n/a 1.000 25.4 0.20 0.09 3.0 76.2 90 6.2 28 100 Y
7564-1000
1 25.4 n/a 1.220 31.0 0.26 0.12 4.0 101.6 90 6.2 28 100 Y
7564-1250
1-1/4 31.8 n/a 1.530 38.9 0.37 0.17 5.0 127.0 80 5.5 28 100 Y
7564-1500
1-1/2 38.1 n/a 1.810 46.0 0.44 0.20 6.0 152.4 75 5.2 28 100 Y
7564-2000
2 50.8 n/a 2.340 59.4 0.67 0.30 8.0 203.2 75 5.2 28 100 Y
7564-2500
2-1/2 63.5 n/a 2.850 72.4 0.90 0.41 10.0 254.0 75 5.2 28 100 Y
7564-3000
3 76.2 n/a 3.450 87.6 1.14 0.52 12.0 304.8 65 4.5 28 100 Y
7564-4000
4 101.6 n/a 4.500 114.3 1.81 0.82 16.0 406.4 55 3.8 28 100 Y
7564-6000
6 152.4 n/a 6.650 168.9 3.36 1.52 24.0 609.6 35 2.4 28 100 Y
**
Stock:
“Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
!
!
WARNINGS!
Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working
pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
Working pressures are at +68°F (+20°C). Higher temperatures reduce the available working pressure. See temperature/pressure chart on
page 445.
!
!
