DYNAFLEX™

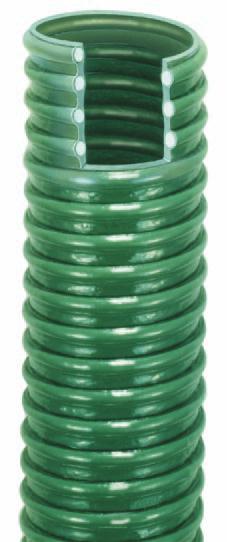

PVC Corrugated Lightweight Suction Hose
Series 7561
Series 7561 is a fexible, lightweight suction and discharge hose for dry abrasive materials
such as debris, granules, pellets and powders; mild chemicals; and water in a variety of
transfer applications. Te hose features a smooth tube that is abrasion resistant and and
allows full-fow. Te corrugated construction incorporates a white PVC helix that provides
suction capability, fexibility for ease of handling and kink resistance. Te cover is resistant
to abrasion, mild chemicals, ultraviolet light and weathering.
NOTE:
Do not use in applications where a static charge may develop unless externally
grounded.
Tube:
Green PVC, smooth fnish
Reinforcement:
Rigid white PVC spiral helix
Cover:
Green PVC, corrugated fnish; clockwise/right hand orientation
Temp. Range:
+23°F to +140°F (-5°C to +60°C)
Working pressures are at +68°F (+20°C). Higher temperatures reduce the
available working pressure. See temperature/pressure chart on page 445.
Brand Method:
Not branded
Design Factor:
3:1
Industry Standards:
None applicable
Applications:
• Abrasive materials, debris, mild chemicals, sewage, slurries, water
• Agriculture, construction, mining
Vacuum:
See below
Compare to:
Kanafex 112 CL; Kuriyama WG; Pacifc Echo 120; Superfex TX
Packaging:
Coils
Part
Number
ID
(in)
ID
(mm)
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec WP
@ 68°F
(psi)
Max
Rec WP
@ 20°C
(bar)
Vacuum
Hg
(in)
Std
Pack
Qty
(ft)
Stock
Status
**
7561-1500
1-1/2 38.1 1.780 45.2 0.33 0.15 5.0 127.0 99 6.8 22 100
N
7561-2000
2 50.8 2.320 58.9 0.51 0.23 7.0 177.8 78 5.4 22 100
Y
7561-2500
2-1/2 63.5 2.830 71.9 0.67 0.30 9.0 228.6 71 4.9 22 100
N
7561-3000
3 76.2 3.400 86.4 0.85 0.39 12.0 304.8 56 3.9 22 100
Y
7561-4000
4 102.0 4.450 113.0 1.33 0.60 15.0 381.0 56 3.9 22 100
N
* Couplings:
Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
**
Stock:
“Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
!
!
WARNINGS!
Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working
pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
Working pressures are at +68°F (+20°C). Higher temperatures reduce the available working pressure. See temperature/pressure chart on
page 445.
!
!
