Parker Industrial Hose Customer Service
866 810 HOSE (4673) 800 242 HOSE (4673)
Strongsville, OH
South Gate, CA
Eastern USA
Western USA
www.safehose.com
e-mail: indhose@parker.com
Petroleum – Transport

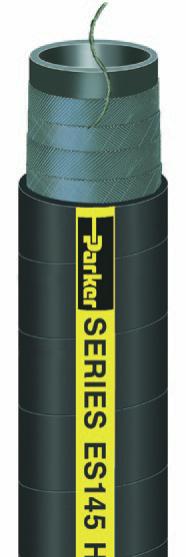

Heavy Duty Petroleum Discharge Hose
Series ES145
CustomMade Hose
Series ES145 is a custom designed heavy duty, high pressure discharge hose to handle
oil and refned fuels such as biodiesel (to B100 in dedicated service), diesel, ethanol and
gasoline. Te hose construction incorporates a static wire as a path to conduct an electrical
charge to ground. Te cover is resistant to abrasion, oil and weathering.
NOTES:
• Refer to the table on pages 213-214 for fuel compatibility and service conditions.
• Other customized versions of this product are available. Contact Parker.
Tube:
Black nitrile
Reinforcement:
Multiple textile plies with static wire
Cover:
Black nitrile; wrapped fnish
Temp. Range:
-40°F to +180°F (-40°C to +82°C)
Brand Method:
Black text on yellow stripe
Brand Example:
PARKER SERIES ES145 HEAVY DUTY OIL AND GAS HOSE 300 PSI WP
MADE IN USA
Design Factor:
4:1
Industry Standards:
None applicable
Applications:
• Biodiesel (to B100 in dedicated service), diesel, ethanol, gasoline, oil
• High pressure in-plant and storage tank transfer/discharge
• High pressure bulk loading rail cars and tank trucks; delivery/transport
discharge
Vacuum:
Not recommended
Packaging:
Coils
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Max
Rec WP
(psi)
Max
Rec WP
(bar)
Std Pack
Qty
(ft)
ES145-1500
1-1/2 38.1
4
2.375
60.3
1.34
0.61
300
21
100
ES145-2000
2
50.8
4
2.875
73.0
1.69
0.77
300
21
100
ES145-3000
3
76.2
4
3.875
98.4
2.34
1.06
300
21
100
ES145-4000
4
101.6
4
4.875 123.8
3.11
1.41
300
21
100
ES145-6000
6
152.4
6
7.063 179.4
5.64
2.56
300
21
100
Couplings:
Per customer specifcations.
WARNINGS!
Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working
pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
Do not use for petroleum transfer or fuel delivery service in submerged applications, such as marine fueling.
!
