Parker Industrial Hose Customer Service
866 810 HOSE (4673) 800 242 HOSE (4673)
Strongsville, OH
South Gate, CA
Eastern USA
Western USA
www.safehose.com
e-mail: indhose@parker.com
P
etroleum – Transport
Lightweight Petroleum Discharge
Hose

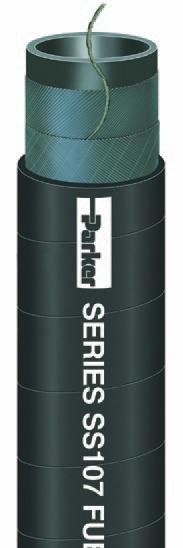

Series SS107 (Black) and

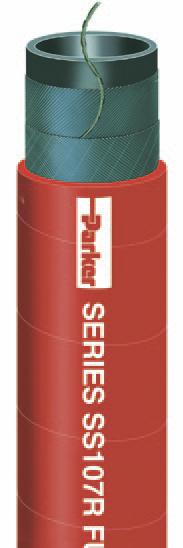

Series SS107R (Red)
Series SS107/SS107R is a lightweight, high pressure discharge hose designed
to handle oil and refned fuels such as biodiesel (to B100 in dedicated
service), diesel, ethanol and gasoline. Te hose construction incorporates a
static wire as a path to conduct an electrical charge to ground. Te cover is
resistant to abrasion, oil and weathering. Series SS107/SS107R is available in
200-foot continuous lengths.
NOTE:
Refer to the table on pages 213-214 for fuel compatibility and service
conditions.
Tube:
Black nitrile
Reinforcement:
Multiple textile plies with static wire
Cover:
SS107:
Black nitrile, wrapped fnish
SS107R:
Red chloroprene, wrapped fnish
Temp. Range:
-40°F to +180°F (-40°C to +82°C)
Brand Method:
SS107:
White text on black stripe
SS107R:
White text on red stripe
Brand Example:
PARKER SERIES SS107(R) FUEL DISCHARGE XXX PSI
WP MADE IN USA
Design Factor:
4:1
Industry Standards:
None applicable
Applications:
• Biodiesel (to B100 in dedicated service), diesel, ethanol,
gasoline, oil
• In-plant and storage tank transfer/discharge
• Delivery/transport discharge
Vacuum:
Not recommended
Compare to:
Gates Steer; Veyance Plicord Fuel Delivery
Packaging:
Coils
Series SS107 (Black) and Series SS107R (Red)
Part
Number
SS107 or
SS107R
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Max
Rec WP
(psi)
Max
Rec WP
(bar)
Perm
Cplg
Rec
*
Std Pack
Qty
(ft)
SS107
Stock
Status
**
SS107R
Stock
Status
**
-1250
1-1/4 31.8 2 1.598 40.6 0.42 0.19 250 17.2
*
100
Y
N
-1500
1-1/2 38.1 2 1.843 46.8 0.49 0.22 250 17.2
*
100
Y
N
-2000
2 50.8 4 2.456 62.4 0.89 0.40 200 13.8
*
100
Y
N
-3000
3 76.2 4 3.456 87.8 1.28 0.58 200 13.8
*
100
Y
N
-4000
4 101.6 4 4.543 115.4 1.83 0.83 200 13.8
*
100
N
N
-6000
6 152.4 4 6.670 169.4 3.39 1.54 200 13.8
*
100
N
N
* Couplings:
Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
**
Stock:
“Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
WARNINGS!
Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working
pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
Do not use for petroleum transfer or fuel delivery service in submerged applications, such as marine fueling.
!
