P
etroleum – Transport

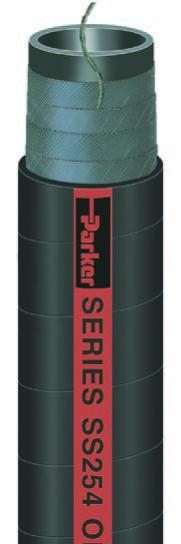

Lightweight Petroleum Discharge Hose
Series SS254
Series SS254 is a large diameter, lightweight discharge hose designed to handle oil and
refned fuels such as biodiesel (to B100 in dedicated service), diesel, ethanol and gasoline.
Te hose construction incorporates a static wire as a path to conduct an electrical charge to
ground. Te cover is resistant to abrasion, oil and weathering.
NOTE:
Refer to the table on pages 213-214 for fuel compatibility and service conditions.
Tube:
Black nitrile
Reinforcement:
Multiple textile plies with static wire
Cover:
Black nitrile; wrapped fnish
Temp. Range:
-40°F to +180°F (-40°C to +82°C)
Brand Method:
Black text on red stripe
Brand Example:
PARKER SERIES SS254 OIL & GAS DISCHARGE 150 PSI WP
MADE IN USA
Design Factor:
4:1
Industry Standards:
None applicable
Applications:
• Biodiesel (to B100 in dedicated service), diesel, ethanol, gasoline, oil
• In-plant and storage tank transfer/discharge
• Delivery/transport discharge
Vacuum:
Not recommended
Packaging:
Coils
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Max
Rec WP
(psi)
Max
Rec WP
(bar)
Perm
Cplg
Rec
*
Std Pack
Qty
(ft)
Stock
Status
**
SS254-6000
6 152.4
4
6.844 173.8 4.25 1.93 150 10.3
*
100
N
SS254-8000
8 203.2
4
8.844 224.6 5.74 2.60 150 10.3
*
100
N
* Couplings:
Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
**
Stock:
“Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
WARNINGS!
Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working
pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
Do not use for petroleum transfer or fuel delivery service in submerged applications, such as marine fueling.
!
