Petroleum – Transport

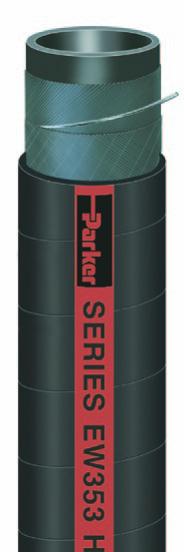

Heavy Duty Tank Truck Hose
Series EW353
CustomMade Hose
Series EW353 is a custom designed, large diameter heavy duty suction and discharge hose
to handle oil and refned fuels such as biodiesel (to B100 in dedicated service), diesel,
ethanol and gasoline. Te hose construction incorporates a dual wire helix that provides
full suction capability, kink resistance, and a path to conduct a static electrical charge to
ground. Te cover is resistant to abrasion, oil and weathering. Series EW353 is compatible
with 50% aromatics.
NOTES:
• Refer to the table on pages 213-214 for fuel compatibility and service conditions.
• Other customized versions of this product are available. Contact Parker.
Tube:
Black nitrile
Reinforcement:
Multiple textile plies with wire helix
Cover:
Black nitrile; wrapped fnish
Temp. Range:
-40°F to +180°F (-40°C to +82°C)
Brand Method:
Black text on red stripe
Brand Example:
PARKER SERIES EW353 HEAVY DUTY TANK TRUCK HOSE
MADE IN USA
Design Factor:
4:1
Industry Standards:
None applicable
Applications:
• Biodiesel (to B100 in dedicated service), diesel, ethanol, gasoline, oil
• In-plant and storage tank transfer
• Bulk loading/unloading rail cars and tank trucks; delivery, transport
Vacuum:
Full
Packaging:
Straight lengths
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Std
Pack
Qty
(ft)
EW353-8000
8 203.2 2 9.250 235.0 12.08 5.48 42.0 1066.8 150 10.3 n/a
EW353-10000
10 254.0 2 11.000 279.4 13.00 5.90 60.0 1524.0 75
5.2
n/a
EW353-12000
12 304.8 2 13.250 336.6 18.00 8.16 72.0 1828.8 65
4.5
n/a
Couplings:
Plain ends only
WARNINGS!
Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working
pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
Do not use for petroleum transfer or fuel delivery service in submerged applications, such as marine fueling.
!
