etroleum – Transport
GREEN LABEL™
Corrugated Tank Truck Hose
Series 7705

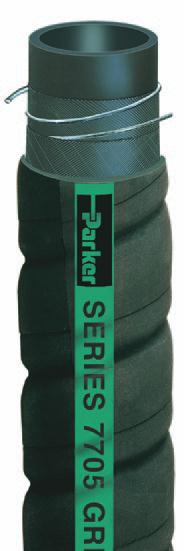

Series 7705 is a fexible, medium pressure suction and discharge hose designed to handle
oil and refned fuels such as biodiesel (to B100 in dedicated and non-dedicated service),
diesel, ethanol and gasoline. Te corrugated hose construction incorporates a dual wire
helix that provides full suction capability, fexibility, kink resistance, and a path to conduct
a static electrical charge to ground. Te nitrile/PVC cover is resistant to abrasion, oil and
weathering, and is available in 200-foot continuous lengths.
NOTE:Refer to the table on pages 213-214 for fuel compatibility and service conditions.
Tube: Black nitrile
Reinforcement: Multiple textile plies with dual wire helix
Cover: Black nitrile/PVC; corrugated wrapped fnish
Temp. Range: -20°F to +180°F (-29°C to +82°C)
Brand Method: Black text on green stripe
Brand Example: PARKER SERIES 7705 GREEN LABEL™ TANK TRUCK HOSE XXX PSI
MAX WP MADE IN USA
Design Factor: 4:1
Industry Standards: None applicable
Applications: • Biodiesel (to B100 in dedicated and non-dedicated service), diesel,
ethanol, gasoline, oil
• In-plant and storage tank transfer
• Delivery, transport
Vacuum: Full
Packaging: Coils
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Perm
Cplg
Rec
*
Std
Pack
Qty
(ft)
Stock
Status
**
7705-1000 1 25.4 2 1.437 36.5 0.55 0.25 2.0 50.8 200 13.8 43 100 Y
7705-1250 1-1/4 31.8 2 1.693 43.0 0.70 0.32 2.5 63.5 200 13.8 * 100 Y
7705-1500 1-1/2 38.1 2 1.969 50.0 0.83 0.38 3.0 76.2 200 13.8 43 100 Y
7705-2000 2 50.8 2 2.440 62.8 1.00 0.45 4.0 101.6 200 13.8 43 100 Y
7705-2500 2-1/2 63.5 2 2.953 75.0 1.37 0.62 5.0 127.0 200 13.8 * 100 Y
7705-3000 3 76.2 2 3.488 88.6 1.75 0.79 5.0 127.0 200 13.8 * 100 Y
7705-4000 4 101.6 2 4.527 115.0 2.33 1.06 6.0 152.4 150 10.3 * 100 Y
* Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
WARNINGS!
„ Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working
pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
„ Do not use for petroleum transfer or fuel delivery service in submerged applications, such as marine fueling.
!
