Petroleum – Transport
PETROMAX™
Corrugated Tank Truck Hose
Series SWC316 (Black) and
Series SWC316R (Red)
Series SWC316/SWC316R is a fexible, lightweight suction and discharge
hose designed to handle oil and refned fuels such as biodiesel (to B100
in dedicated service), diesel, ethanol and gasoline. Te corrugated hose
construction incorporates a dual wire helix that provides full suction
capability, fexibility, kink resistance, and a path to conduct a static
electrical charge to ground. Te cover is resistant to abrasion, oil and
weathering.
NOTE:
Refer to the table on pages 213-214 for fuel compatibility and
service conditions.
Tube:
Black nitrile
Reinforcement:
Multiple textile plies with dual wire helix
Cover:

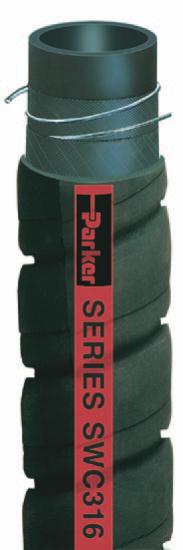

SWC316:
Black nitrile; corrugated wrapped fnish

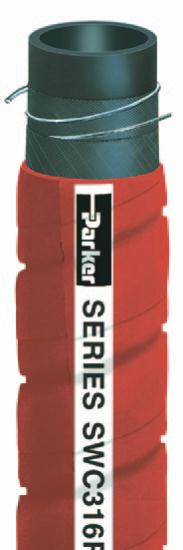

SWC316R:
Red nitrile; corrugated wrapped fnish
Temp. Range:
-40°F to +180°F (-40°C to +82°C)
Brand Method:
SWC316:
Black text on red stripe
SWC316R:
Black text on white stripe
Brand Example:
PARKER SERIES SWC316(R) PETROMAX PETROLEUM
SUCTION & DISCHARGE HOSE XXX PSI WP MADE IN
USA
Design Factor:
4:1
Industry Standards:
None applicable
Applications:
• Biodiesel (to B100 in dedicated service), diesel,
ethanol, gasoline, oil
• In-plant and storage tank transfer
• Delivery, transport
Vacuum:
Full
Compare to:
Boston Puma; Gates Longhorn; Kuriyama T605AA;
Veyance Plicord Flexwing Petroleum
Packaging:
Coils
Series SWC316 (Black) and SWC316R (Red)
Part
Number
SWC316 or
SWC316R
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Perm
Cplg
Rec
*
Std
Pack
Qty
(ft)
SWC316
Stock
Status
**
SWC316R
Stock
Status
**
-1000
1 25.4 2 1.563 39.7 0.60 0.27 3.0 7.6 150 10.3 *
100 N
N
-1500
1-1/2 38.1 2 2.063 52.4 0.84 0.38 4.0 10.2 150 10.3 *
100 Y
N
-2000
2 50.8 2 2.563 65.1 1.19 0.54 5.0 12.7 150 10.3 *
100 Y
N
-2500
2-1/2 63.5 2 3.063 77.8 1.45 0.66 6.0 15.2 150 10.3 *
100 N
N
-3000
3 76.2 2 3.594 91.3 1.97 0.89 9.0 22.9 150 10.3 *
100 Y
N
-4000
4 101.6 2 4.594 116.7 2.78 1.26 12.0 30.5 150 10.3 *
100 Y
N
-6000
6 152.4 2 6.750 171.5 4.89 2.22 18.0 45.7 125 8.6 *
100 N
N
* Couplings:
Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
**
Stock:
“Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
