Petroleum – Transport
ARCTIC TRANSLITE
®
Low Temperature Corrugated Tank Truck Hose

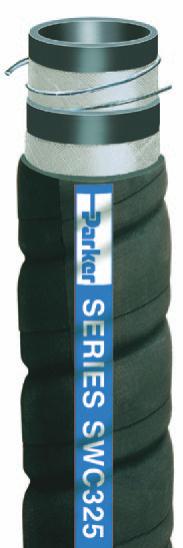

Series SWC325
Series SWC325 is a fexible, lightweight, low temperature suction and discharge hose
designed to handle oil and refned fuels such as biodiesel (to B100 in dedicated service),
diesel, ethanol and gasoline. Te corrugated hose construction incorporates a dual wire
helix that provides full suction capability, fexibility and kink resistance—even in the
harshest cold climate conditions to -67°F (-55°C)—and a path to conduct a static electrical
charge to ground. Te cover is resistant to abrasion, oil and weathering.
NOTE:
Refer to the table on pages 213-214 for fuel compatibility and service conditions.
Tube:
Black nitrile
Reinforcement:
Multiple textile plies with dual wire helix
Cover:
Black nitrile; corrugated wrapped fnish
Temp. Range:
-67°F to +180°F (-55°C to +82°C)
Brand Method:
White text on blue stripe
Brand Example:
PARKER SERIES SWC325 ARCTIC TRANSLITE
®
-67°F LOW-TEMP
TANK TRUCK HOSE XXX PSI WP MADE IN USA
Design Factor:
4:1
Industry Standards:
None applicable
Applications:
• Biodiesel (to B100 in dedicated service), diesel, ethanol, gasoline, oil
• Low temperature in-plant and storage tank transfer
• Low temperature delivery, transport
Vacuum:
Full
Packaging:
Coils
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Perm
Cplg
Rec
*
Std
Pack
Qty
(ft)
Stock
Status
**
SWC325-1500
1-1/2 38.1 2 2.080 52.8 0.83 0.38 1.5 3.8 150 10.3 C&G, HAPS,
TM
100 Y
SWC325-2000
2 50.8 2 2.580 65.5 1.19 0.54 2.0 5.1 150 10.3
C&G 100 Y
SWC325-2500
2-1/2 63.5 2 3.120 79.2 1.56 0.71 2.5 6.4 150 10.3
*
100 N
SWC325-3000
3 76.2 2 3.680 93.5 2.12 0.96 3.0 7.6 150 10.3 C&G, TM 100 Y
SWC325-4000
4 101.6 2 4.680 118.9 2.79 1.27 4.0 10.2 150 10.3 C&G, TM 100 Y
SWC325-6000
6 152.4 2 6.750 171.5 4.87 2.21 6.0 15.2 125 8.6
*
100 Y
* Couplings:
Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
NOTE:
C&G (above) designates crimped-on Cam and Groove couplings.
**
Stock:
“Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
WARNINGS!
Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working
pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
Do not use for petroleum transfer or fuel delivery service in submerged applications, such as marine fueling.
!
