Parker Industrial Hose Customer Service
866 810 HOSE (4673) 800 242 HOSE (4673)
Strongsville, OH
South Gate, CA
Eastern USA
Western USA
www.safehose.com
e-mail: indhose@parker.com
P
etroleum – Transport
Petroleum Suction & Discharge Hose

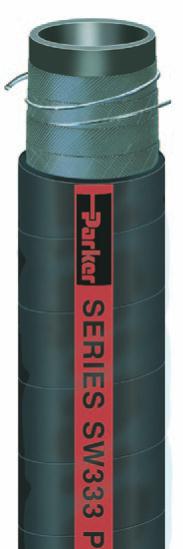

Series SW333
Series SW333 is a medium pressure suction and discharge hose designed to handle oil and
refned fuels such as biodiesel (to B100 in dedicated service), diesel, ethanol and gasoline
in bulk loading and unloading applications. Te hose construction incorporates a dual wire
helix that provides full suction capability, kink resistance, and a path to conduct a static
electrical charge to ground. Te nitrile cover is resistant to abrasion, oil and weathering.
Series SW333 is available in 200-foot continuous lengths.
NOTES: •
Refer to the table on pages 213-214 for fuel compatibility and service conditions.
• Do not use Series SW333 in dock service.
Tube:
Black nitrile
Reinforcement:
Multiple textile plies with dual wire helix
Cover:
Black nitrile; wrapped fnish
Temp. Range:
-40°F to +180°F (-40°C to +82°C)
Brand Method:
Black text on red stripe
Brand Example:
PARKER SERIES SW333 PETROLEUM SUCTION & DISCHARGE HOSE
250 PSI NOT FOR DOCK SERVICE MADE IN USA
Design Factor:
4:1
Industry Standards:
None applicable
Applications:
• Biodiesel (to B100 in dedicated service), diesel, ethanol, gasoline, oil
• High pressure in-plant and storage tank transfer
• High pressure bulk loading/unloading rail cars and tank trucks,
delivery, transport
Vacuum:
Full
Packaging:
Coils
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Perm
Cplg
Rec
*
Std
Pack
Qty
(ft)
Stock
Status
**
SW333-2000
2 50.8 4 2.622 66.6 1.51 0.68 8.0 203.2 250 17.2 *
100 N
SW333-3000
3 76.2 4 3.654 92.8 2.29 1.04 12.0 304.8 250 17.2 *
100 Y
SW333-4000
4 101.6 4 4.842 123.0 3.95 1.79 18.0 457.2 250 17.2 *
100 Y
SW333-6000
6 152.4 4 6.929 176.0 6.22 2.82 30.0 762.0 250 17.2 *
100 Y
* Couplings:
Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
**
Stock:
“Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
Caution:
Not for dock hose service.
WARNINGS!
Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working
pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
Do not use for petroleum transfer or fuel delivery service in submerged applications, such as marine fueling.
!
